Schneider Electric LA4DT4U TeSys Deca On-Delay Timer Module 25-500s, 24-250V AC/DC
Schneider Electric LA4DT4U TeSys Deca On-Delay Timer Module 25-500s, 24-250V AC/DC
- MPN: LA4DT4U
- PPN: SCH-LA4DT4U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$241.22/ EA
Description

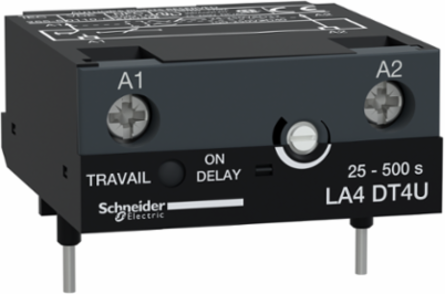

TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 25 to 500 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.
Specifications
Environment
- Product Certifications
- UL || CSA
- Standards
- IEC 60255-5
- Ip Degree Of Protection
- IP2X IEC 60529
- Permissible Ambient Air Temperature Around The Device
- -25-70 °C
- Heat Dissipation
- 2-2 W
Ambient Air Temperature For Operation-25-55 °C
Immunity To Microbreaks10 ms during time delay || 2 ms after time delay
Ambient Air Temperature For Storage-40-80 °C
Protection Typebuilt-in by varistor
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111253EN
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 24...250 V AC 50/60 Hz || 24...250 V DC
- Timer Type
- on delay
- Net Weight
- 0.04 kg
- Mounting Location
- top
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
- [Ures] Residual Voltage
- 3.3 V
- Local Signalling
- illuminates during time delay by LED
Control Circuit Voltage Limitsby mechanical contact: 0.8...1.1 Uc
Electrical Durability30 Mcycles
Connections - Terminalscontrol circuit connector 1 1-2.5 mm²flexible with cable end || control circuit connector 1 1-2.5 mm²solid with cable end || control circuit connector 1 1-2.5 mm²flexible without cable end || control circuit connector 1 1-2.5 mm²solid without cable end || control circuit connector 2 1-2.5 mm²flexible with cable end || control circuit connector 2 1-2.5 mm²solid with cable end || control circuit connector 2 1-2.5 mm²flexible without cable end || control circuit connector 2 1-2.5 mm²solid without cable end
Reset Time150 ms during time delay || 50 ms after time delay
Time Delay Range25...500 s
Tightening Torque1.7 N.m
Specifications
- Product Or Component Type
- serial timer modules
- Poles Description
- 3P
- Device Short Name
- LA4DT
RangeTeSys
Product CompatibilityLC1D09...D38 || LC1D80...D150 || LC1D40A...D80A
