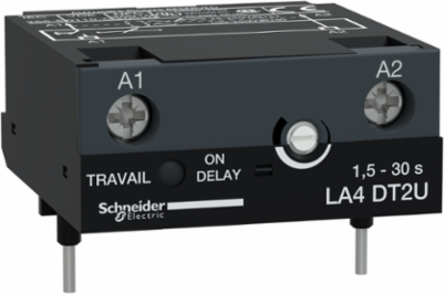

Schneider Electric LA4DT2U TeSys Deca Timer Module, 1.5-30s Delay, 24-250V AC/DC
- MPN: LA4DT2U
- PPN: SCH-LA4DT2U
CAD
$255.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 1.5 to 30 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Tunisia, United States
Complementary Attributes
- Control Circuit Voltage Limits
- by mechanical contact: 0.8...1.1 Uc
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Immunity To Microbreaks
- 10 ms during time delay, 2 ms after time delay
- Certificate Agency
- CSA, UL
- Connections - Terminals
- control circuit connector 1 1-2.5 mm²solid without cable end, control circuit connector 2 1-2.5 mm²solid with cable end, control circuit connector 2 1-2.5 mm²flexible without cable end, control circuit connector 2 1-2.5 mm²solid without cable endcontrol circuit connector 1 1-2.5 mm²flexible with cable end, control circuit connector 1 1-2.5 mm²solid with cable end, control circuit connector 1 1-2.5 mm²flexible without cable end, control circuit connector 2 1-2.5 mm²flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.11992495921696572
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LA4DT
- Energy Efficiency Optimized
- False
- Local Signalling
- illuminates during time delay by LED
- Number Of Poles
- 3P
- Product Or Component Type
- serial timer modules
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Time Delay Range
- 1.5...30 s
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Pep Code
- ENVPEP1112053EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Reset Time150 ms during time delay, 50 ms after time delay
[Uc] Control Circuit Voltage24...250 V AC 50/60 Hz, 24...250 V DC
Carbon Footprint Of The Distribution Phase [A4]0.004738662316476345, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.36048939641109295
Local Publishable Date2025-05-18
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1923
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLA4DT
Electrical Durability30 Mcycles
Heat Dissipation2-2 W
Mounting Locationtop
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typebuilt-in by varistor
Range Of ProductTeSys Deca
Software Versionv5.9.4
Tightening Torque1.7 N.m
Timer Typeon delay
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionIt provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %20
[Ures] Residual Voltage3.3 V
Package Weight(Lbs)48.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Product Compatibility
- LC1D09...D38, LC1D80...D150, LC1D40A...D80A
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1112053EN
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1112053EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Permissible Ambient Air Temperature Around The Device-25-70 °C, -25-70 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint0.485153017944535
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- serial timer modules
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC002060
ETIM 9EC002060
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
