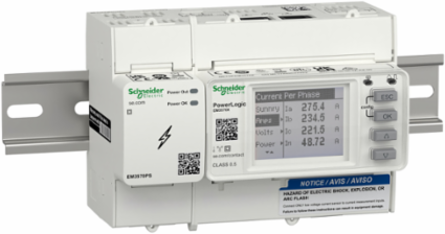

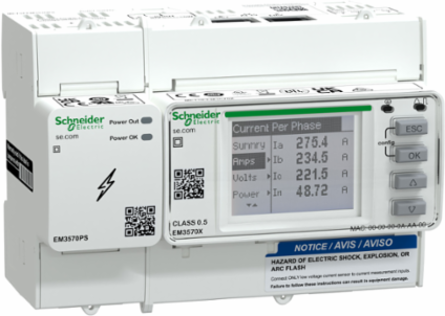

Schneider Electric METSEEM3570 DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, LVCT input bundled with external Power Supply
- MPN: METSEEM3570
- PPN: SCH-METSEEM3570
CAD
$1126.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

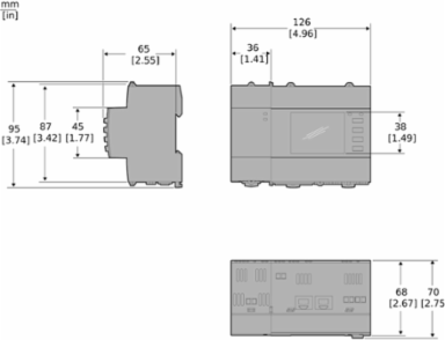

The EM3570 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM3570 models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI (CTs must be rated for use with Class 1 voltage inputs). Bidirectional monitoring supports both upstream and downstream power flow, critical for renewable energy applications. BACnet/IP, Modbus TCP/ IP and SNMP come native, along with Dual Ethernet ports for daisy chain for good versatility and flexibility. Product need to be supplied by a 24VDC source. Two digital inputs support status monitoring, pulse counting, multi tariff and partial resets. Relay output for alarm notification. Product dimensions are as follows: width 90 mm, depth 70 mm, height 91 mm. Compliant with the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. Meter need to be supplied in 24VDC, no voltage transformer included. The PowerLogic EM3570 supports IPv6 and network auto-detection. It comes with embedded web pages that display real time data, usage peaks and alarm status. Designed with cybersecurity in mind, it also allows full configuration of all network services.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, Philippines, United States
Depth70.6 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP, BACnet IP, HTTPS, SNMP, SNTP, Link Layer Discovery Protocol
- Communication Service
- Syslog protocol support
Communication Port SupportRJ45
Physical Attributes
- Buffer Size
- 16-bit 10
ColorWhite
Complementary Attributes
- Rated Voltage
- 90-347 V phase to neutral (L-N))156-600 V phase to phase (L-L))
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- energy consumption logs, time stamping, data logs
- Function Available
- external synchronisation to communication, sliding/fixed/rolling block
- Local Signalling
- Orange LED alarm / energy, Green flashing LED operating state
- Metering Type
- peak demand power PM, QM, SM, current I1, I2, I3, Iavg, active, reactive, apparent energy (signed, four quadrant), demand power P, Q, S, voltage U21, U32, U13, V1, V2, V3, calculated neutral current
- Number Of Poles
- + N, 2P + N, 1P + N, 3P
- Type Of Measurement
- apparent power per phasepower factor per phaseactive and reactive power total, active and reactive power per phase, apparent power total, power factor total, peak demand power, current, voltage, frequency, starting current selection range
- Certificate Agency
- CE, UKCA, cULus, BTL
- Connections - Terminals
- current circuit screw terminals 6-6 mm²voltage circuit screw terminals 1.5-1.5 mm², input circuit screw terminals 6-6 mm²supply circuit screw terminals 4-4 mm², relay output screw terminals 1.5-1.5 mm²
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.3119497268
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 84 kg CO2 eq., 84.2455373406
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310190EN_Web.pdf, PLSED310190EN
- Local Publishable Date
- 2025-06-18
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BAT : ≤ 2g AND ≤ 2 BAT
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- EM3570
- Display Resolution
- 126 x 94 pixels
- Energy Efficiency Optimized
- False
- Memory Capacity
- 32 GB

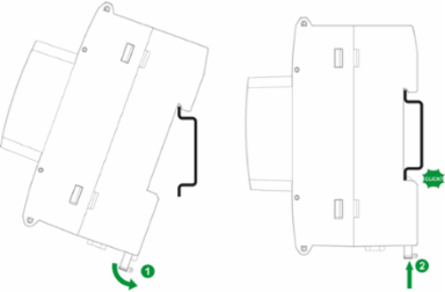

- Mounting Support
- DIN rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Tamperproof Of Settings
- protected by access code
- Total Lifecycle Carbon Footprint
- 523 kg CO2 eq.
- Pep Code
- ENVPEP2103001EN
- Pep Verification Date
- 2021-03-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: INDIA
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
- Height Nominal
- 91.4 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationpartial meter, sub billing, multi-tariff
Information Displayedstatus and alert, communication IP address, input/output status, error, alarms, instant power per usage, firmware info, configurable summary page (average, total, demand, nominal values)
Measurement Accuracyactive energy +/- 0.5 %reactive energy +/- 2 %, reactive power +/- 2 %, apparent energy +/- 0.5 %, apparent power +/- 0.5 %power factor +/- 0.005, frequency +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %
Network Frequency60 Hz +/- 10 %, 50 Hz +/- 10 %
Tightening Torquecurrent circuit: 0.8-0.8 N.mvoltage circuit: 0.5-0.5 N.m, input circuit: 0.5-0.5 N.m, supply circuit: 0.8-0.8 N.m, relay output: 0.8-0.8 N.m
Web Servicesreal time viewing of data, network and protocol setting, data and time, IP filtering
[Ue] Rated Operational Voltage125...300 V DC external module, 90...600 V AC 50/60 Hz external module
Carbon Footprint Of The Distribution Phase [A4]0.0554793989, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0045418652, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]438 kg CO2 eq., 438.3219518272
Local Data StatusPublishable
Pre Comm Date2024-08-20
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2103001_V1
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2108
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Display Digits5
Display TypeBacklit LCD
Measurement Current1-32767 A
Mounting Modeclip-on
Power Consumption In W5 W
Product NamePowerLogic EM3570
RangePowerLogic
Service Life15 year(s) 45 °C 60% RH
Sustainable PackagingNo
Technology Typeelectronic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit Description1.Bidirectional Energy measurement, External current sensors, Supports Multi tariff, Demand Low-voltage DC control power& 102.AC/DC Power Supply with 24Vdc Output
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh578.16
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
Width Nominal126 mm
Package Weight(Lbs)522.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 522.9394601588
- Circularity Profile
- ENVEOLI2103001_V1
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2103001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Operating Altitude<= 9842.52 ft (3000 m), <= 9842.52 ft (3000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2103001EN
Ip Degree Of ProtectionIP20 meter:IP40 display:
Packaging Without Single Use PlasticYes
Relative Humidity5-95 %
Pep Verification Date2021-03-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 relay output
Input Attributes
- Analogue Input Type
- low voltage current transformer 0.333 V or 1 V
Number Of Inputs2 digital
