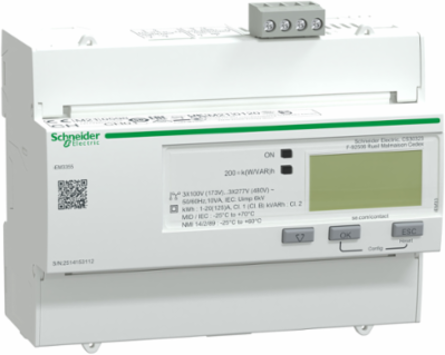

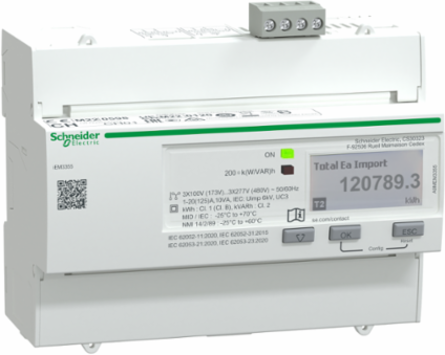

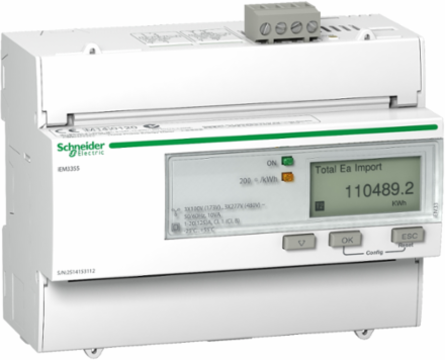

Schneider Electric A9MEM3355 iEM3355 energy meter - 125 A - Modbus - 1 digital I - 1 digital O - multi-tariff - MID
Schneider Electric A9MEM3355 iEM3355 energy meter - 125 A - Modbus - 1 digital I - 1 digital O - multi-tariff - MID
- MPN: A9MEM3355
- PPN: SCH-A9MEM3355
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$662.77/ EA
Description
iEM3355 energy meter - 125 A - Modbus - 1 digital I - 1 digital O - multi-tariff - MID
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Color
- White
Complementary Attributes
- Rated Voltage
- 100-277 V, 173-480 V
- Maximum Value Measured
- 99999999.9 kWh
Line Rated Current125 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Device Application
- multi-tariff, sub billing, partial meter
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocationbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Poles Description
- 3P + N, 1P + N, 3P
- Carbon Footprint Of The Distribution Phase A4
- 0.13324, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.1 kg CO2 eq., 0.13339
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 52 kg CO2 eq., 52.475
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310049EN&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Use Carbon Footprint
- 52.475
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- iEM3355
- Energy Efficiency Optimized
- False
- Information Displayed
- tariff 4)
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- No
- Software Version
- v5.9.4
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- This is a energy measuring meter which can measure 125 A current with Modbus protocol,1 digital input and 1 digital Output feature for service life of 10 years& 10Dimensions: H103.2mm x L126mm x D69.3mm& 10IP40 front panel: conforming to IEC 60529& 10IP20 body: conforming to IEC 60529
- Functional-unit Unit
- EACH
- Energy Consumption On Product Lifetime, In Kwh
- 124.83
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Offer Owner Code
- 190781
- Height Nominal
- 103.2 mm
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 12.313
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -2.3688
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 52.475
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 1440.2725
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 1.6179
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1259.4
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -49.965
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 620.81
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -44.639
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -64.486
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 827.65
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -42.422
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 4.5218
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -3.5851
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 5.5715
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 166.7
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 1.4882
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 16.893
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 5.1434
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.5298
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 5.5715
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 155.99
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 1.3886
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 16.306
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 1.4915
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.4152
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 259.3
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 3.4405
- Water Use (M3 Eq) End Of Life [C1-c4]
- 70.441
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking, alarm overload, Yellow indicator light communications are active on the Modbus port (Modbus)
Network Frequency50 Hz, 60 Hz
Type Of Measurementactive and reactive energy, active and reactive power, current, voltage
Carbon Footprint Of The End Of Life Phase C1 To C40.83364, 0.8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A312 kg CO2 eq., 12.45
Certificate AgencyMID EN 50470-1 sub-meter)CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter), RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter), METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter), NMI NMI M 6-1
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Manufacturing Carbon Footprint12.45
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1404007_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1201
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeiEM3355
Display TypeLCD display
Halogen Free StatusHalogen free plastic parts product
Measurement Current0-125 A
Mounting Modeclip-on
Overvoltage CategoryIII
Product NameActi9 iEM3000
RangeActi9
Sampling Rate32 samples/cycle
Sustainable PackagingNo
Total Lifecycle Carbon Footprint66 kg CO2 eq.
Connections Terminalsscrew terminals 50-50 mm²
Pep CodeENVPEP1404007EN
Pep Verification Date2025-03-18
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %32
Pn1
Width Nominal126 mm
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]52.414
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]12.45
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-2.4078
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]161.56
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.3886
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]16.306
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]184.11
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]178.94
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]42.367
Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]1.8143
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]67.037
Net Use Of Fresh Water (M3) End Of Life [C1-c4]1.8428
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7.79
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle5.5715
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle1705.3991
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]1.6179
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1518.7
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-51.495
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]259.3
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle5.5715
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1434.7025
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]1.6179
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1259.4
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-49.965
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.4915
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.6518
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1146
Water Use (M3 Eq) Operational Energy Use [B6]1.9155
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-2.0638
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC, -25-70 °C - IEC, -25-60 °C - IEC, -25-60 °C - IEC-25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC
- Ip Degree Of Protection
- IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 14
- Environmental Disclosure
- ENVPEP1404007EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 50-50 °C
- Pep Verification Date
- 2025-03-18
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Operating Altitude< 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint66.02527
Circularity ProfileENVEOLI1404007_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1404007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Input Attributes
- Analogue Input Type
- direct connection
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
Specifications
- Country of Origin
- China, France, India, Mexico, Singapore
Depth69.3 mm
