Square D METSEEM3550A PowerLogic EM3500 Energy Meter, 20-5000 A, DIN Rail, Modbus
- MPN: METSEEM3550A
- PPN: SCH-METSEEM3550A
CAD
$678.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

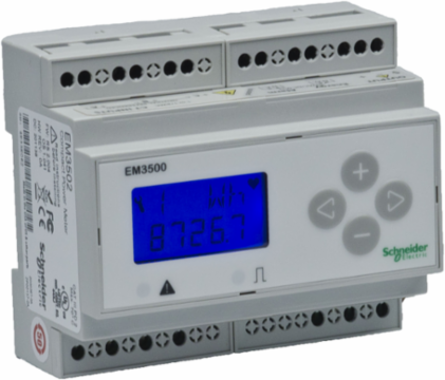

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth59 mm
Communications & Management Attributes
- Communication Service
- total cumulated energy, total cumulated active energy
- Communication Port Support
- screw terminal block RS485
Communication Port ProtocolModbus RTU 1200…38400 bps - 2-wire
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Voltage
- 90-347 V
Important Information Attributes
- Device Application
- sub billing, partial meter
- Information Displayed
- status and alert, communication with system, input/output status, error, Tx activity, Rx activity, instant power per usage
- Measurement Accuracy
- power +/- 0.5 %, energy +/- 0.5 %
- Mounting Mode
- clip-on, by screws
- Type Of Measurement
- apparent power per phasepower factor per phase, active and reactive power total, active and reactive power per phase, apparent power total, power factor total, peak demand power, current, voltage, frequency
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.8889475602366841
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 10.83731303937071
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2509001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2031
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- EM3550A
- Display Type
- Backlit LCD
- Measurement Current
- 20-5000 A
- Number Of Poles
- 3P + N
- Power Consumption In W
- 3 W 300-300 V
- Product Name
- PowerLogic EM3500
- Range
- PowerLogic
- Software Version
- v6.2.4
- Tamperproof Of Settings
- protected by access code
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Pep Code
- ENVPEP2509001EN
- Pep Verification Date
- 2025-10-29
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 91 mm
- Certificate Agency
- CE conforming to IEC 61010cULus conforming to UL 508
- Ride-through Time
- 100 ms 120 V AC
- Package Weight(Lbs)
- 544.311 g
- Warranty (In Months)
- 18
Function Availableexternal synchronisation to communication, fixed or rolling block
Local SignallingRed LED threshold reached, Green flashing LED output signal
Metering Typepeak demand power PM, QM, SM, demand power P, Q, S, voltage U21, U32, U13, V1, V2, V3, current I1, I2, I3, Iavg
Network Frequency50 Hz, 60 Hz
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.007375080016090249, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-06-18
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Data Recordingenergy consumption logs
Display Digits5
Energy Efficiency OptimizedFalse
Mounting SupportDIN rail
Power Consumption In Va5-5 VA 347 V AC between phase and neutral)5-5 VA 600 V AC between phases)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeenergy meter
ReturnabilityYes
Sustainable PackagingNo
Technology Typeelectronic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh148.044
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal107 mm
[Ue] Rated Operational Voltage90...347 V AC 50/60 Hz between phase and neutral UL156...600 V AC 50/60 Hz between phases UL90...300 V AC 50/60 Hz between phase and neutral CE125...300 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028300000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- 9 Mm Pitches
- 12
- Circularity Profile
- ENVEOLI2509001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-10-29
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.733635679623482
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Environmental DisclosureENVPEP2509001EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2509001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 alarm output, 1 pulse
Input Attributes
- Analogue Input Type
- Rogowski coil 50...5000 A
