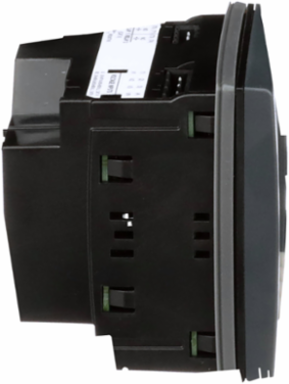

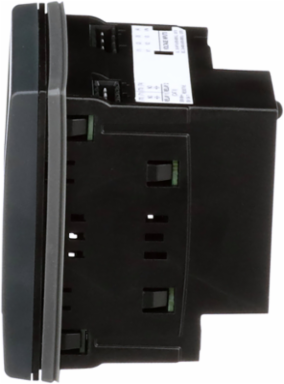

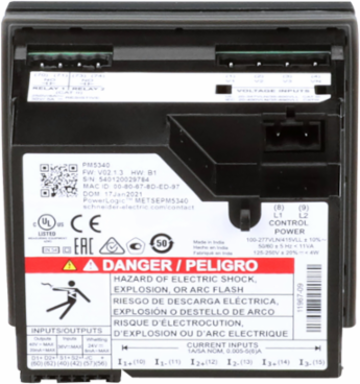

Schneider Electric METSEPM5340 Power Meter PM5340, 96mm x 96mm LCD, Ethernet, Class 0.5S Accuracy
- MPN: METSEPM5340
- PPN: SCH-METSEPM5340
CAD
$1479.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

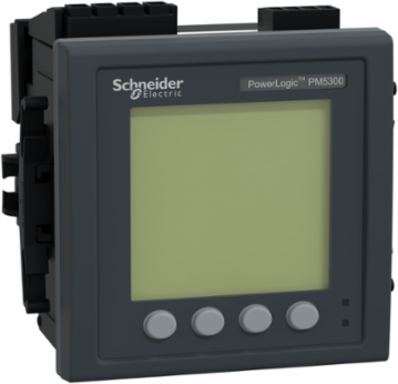

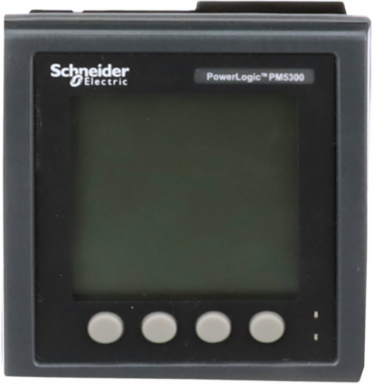

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, United States
Depth72 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP 10/100 Mbit/s 2500 V, BACnet IP
Communication Port SupportETHERNET
Complementary Attributes
- Line Rated Current
- 5 A, 1 A
Maximum Power Consumption In Va11 VA 415 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- data logs, alarm logs, time stamping, event logs, min/max of instantaneous values, maintenance logs
- Electromagnetic Compatibility
- limits for harmonic current emissions class A conforming to IEC 61000-3-2, electrostatic discharge level 4 conforming to IEC 61000-4-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022
- Measurement Accuracy
- active energy +/- 0.5 %reactive energy +/- 2 %, active power +/- 0.5 %, apparent power +/- 0.5 %frequency +/- 0.05 %power factor +/- 0.5, current +/- 0.5 %, voltage +/- 0.5 %, apparent energy +/- 0.5 %, reactive power +/- 2 %
- Number Of Poles
- 3P, 1P + N, 3P + N
- Connections - Terminals
- voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, input/output circuit screw terminal block6, relay output screw terminal block4Ethernet network RJ45 connector
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06468366293780521, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.027104465221511866
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 172 kg CO2 eq., 171.68554083633026
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1305025_V3
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2031
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- PM5340
- Display Resolution
- 128 x 128 pixels
- Energy Efficiency Optimized
- False
- Information Displayed
- tariff 4)
- Measurement Voltage
- 35-760 V AC 45...65 Hz between phases20-400 V AC 45...65 Hz between phase and neutral
- Mounting Mode
- flush-mounted
- Power Quality Analysis
- up to the 31st harmonic
- Product Name
- PowerLogic PM5000
- Range
- PowerLogic
- Sampling Rate
- 64 samples/cycle
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To measure and monitor electrical parameters over a 10-year period, the device consumes 3.25 watts in active mode (39.50% time) and 2.6 watts in standby mode (60% time), resulting in a total energy consumption of 249.11 kWh. It operates within a supply voltage range of 90-450V AC and 100-300V DC, with a network frequency of 50Hz or 60Hz. The device can measure current (5-8500mA), voltage (35-760V AC, 20-400V DC), and frequency (45-65Hz), ensuring accurate and reliable monitoring in accordance with relevant standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 257.1717
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 96 mm
- Certificate Agency
- CE conforming to IEC 61010-1cULus conforming to UL 61010-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationmulti-tariff, power monitoring
Market Segmentbuildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
Network Frequency60 Hz, 50 Hz
Type Of Measurementcurrent, voltage, frequency, power factor, energy, active and reactive power
Ride-through Time100 ms 120 V AC typical400 ms 230 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.0097374787289033, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 13.57565980110084
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date2025-06-18
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NamePM5340
Display Typemonochrome graphic LCD
Frequency Measurement Range45-65 Hz
Measurement Current5-9000 mA
Memory Capacity256 kB
Mounting Supportframework
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint186 kg CO2 eq.
Pep CodeENVPEP1305025EN
Pep Verification Date2025-09-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %4
Width Nominal96 mm
[Us] Rated Supply Voltage90...450 V AC 45...65 Hz100...300 V DC
Package Weight(Lbs)502.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C meter, -25-70 °C meter, -20-70 °C display, -20-70 °C display, -25--20 °C with reduced performance) display, -25--20 °C with reduced performance) display, -25--20 °C with reduced performance) display-25-70 °C meter, -25-70 °C meter, -20-70 °C display, -20-70 °C display, -25--20 °C with reduced performance) display
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 186.36272624431933
- Environmental Disclosure
- ENVPEP1305025EN
- Ip Degree Of Protection
- IP51 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1305025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1305025_V3
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 9842.52 ft (3000 m)<= 9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C non-condensing
Pep Verification Date2025-09-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 2 relay, 2 digital
Input Attributes
- Analogue Input Type
- voltage (impedance 10 MOhm)current (impedance <= 0.3 mOhm)
Number Of Inputs2 digital
