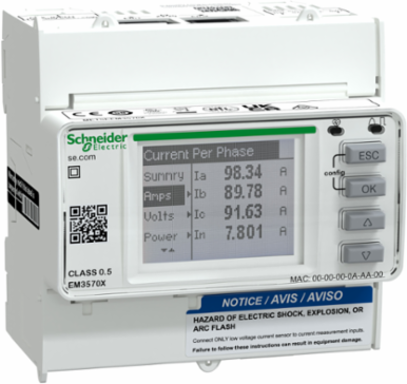

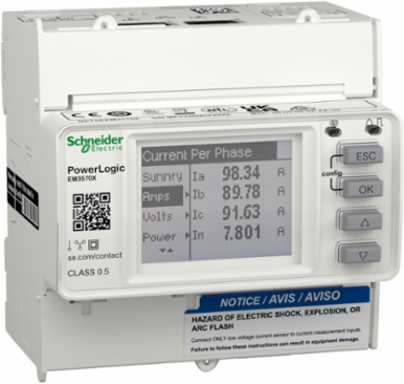

Schneider Electric METSEEM3570X DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, LVCT input
- MPN: METSEEM3570X
- PPN: SCH-METSEEM3570X
CAD
$1030.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The EM3570 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM3570 models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI (CTs must be rated for use with Class 1 voltage inputs). Bidirectional monitoring supports both upstream and downstream power flow, critical for renewable energy applications. BACnet/IP, Modbus TCP/ IP and SNMP come native, along with Dual Ethernet ports for daisy chain for good versatility and flexibility. The provided 24VDC power supply have the same form factor as the meter, making possible installation side by side. Two digital inputs support status monitoring, pulse counting, multi tariff and partial resets. Relay output for alarm notification. Product dimensions are as follows: width 90+36 mm, depth 70 mm, height 91 mm. Compliant with the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. This reference come with a 24VDC power supply bundled with the meter. The PowerLogic EM3570 supports IPv6 and network auto-detection. It comes with embedded web pages that display real time data, usage peaks and alarm status. Designed with cybersecurity in mind, it also allows full configuration of all network services.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, Philippines
Depth70.6 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP, BACnet IP, HTTPS, SNMP, SNTP, Link Layer Discovery Protocol
- Communication Service
- Syslog protocol support
Communication Port SupportRJ45
Physical Attributes
- Buffer Size
- 16-bit 10
ColorWhite
Complementary Attributes
- Rated Voltage
- 90-347 V phase to neutral (L-N))156-600 V phase to phase (L-L))
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- energy consumption logs, time stamping, data logs
- Function Available
- external synchronisation to communication, sliding/fixed/rolling block
- Local Signalling
- Orange LED alarm / energy, Green flashing LED operating state
- Metering Type
- peak demand power PM, QM, SM, current I1, I2, I3, Iavg, active, reactive, apparent energy (signed, four quadrant), demand power P, Q, S, voltage U21, U32, U13, V1, V2, V3, calculated neutral current
- Number Of Poles
- + N, 2P + N, 1P + N, 3P
- Type Of Measurement
- apparent power per phasepower factor per phaseactive and reactive power total, active and reactive power per phase, apparent power total, power factor total, peak demand power, current, voltage, frequency, starting current selection range
- Certificate Agency
- CE, UKCA, cULus, BTL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0340617705, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.002788494, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 263 kg CO2 eq., 262.9931710963
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-08-20
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2103001_V1
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2108
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Digits
- 5
- Display Type
- Backlit LCD
- Measurement Current
- 1-32767 A

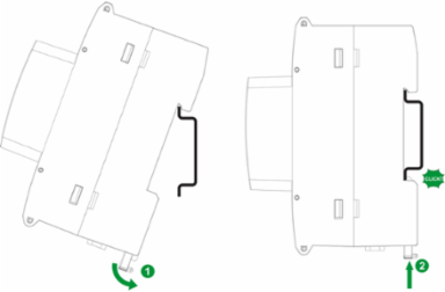

- Mounting Mode
- clip-on
- Power Consumption In W
- 5 W
- Product Name
- PowerLogic EM3570
- Range
- PowerLogic
- Service Life
- 15 year(s) 45 °C 60% RH
- Sustainable Packaging
- No
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- 1.Bidirectional Energy measurement, External current sensors, Supports Multi tariff, Demand Low-voltage DC control power& 102.AC/DC Power Supply with 24Vdc Output
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 346.896
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
- Width Nominal
- 90 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationpartial meter, sub billing, multi-tariff
Information Displayedstatus and alert, communication IP address, input/output status, error, alarms, instant power per usage, firmware info, configurable summary page (average, total, demand, nominal values)
Measurement Accuracyactive energy +/- 0.5 %reactive energy +/- 2 %, reactive power +/- 2 %, apparent energy +/- 0.5 %, apparent power +/- 0.5 %power factor +/- 0.005, frequency +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %
Network Frequency60 Hz +/- 10 %, 50 Hz +/- 10 %
Tightening Torquecurrent circuit: 0.8-0.8 N.mvoltage circuit: 0.5-0.5 N.m, input circuit: 0.5-0.5 N.m, supply circuit: 0.8-0.8 N.m, relay output: 0.8-0.8 N.m
Web Servicesreal time viewing of data, network and protocol setting, data and time, IP filtering
Connections - Terminalscurrent circuit screw terminals 6-6 mm²voltage circuit screw terminals 1.5-1.5 mm², input circuit screw terminals 6-6 mm²supply circuit screw terminals 4-4 mm², relay output screw terminals 1.5-1.5 mm²
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.191522623
Carbon Footprint Of The Manufacturing Phase [A1 To A3]52 kg CO2 eq., 51.7228415301
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310190EN_Web.pdf, PLSED310190EN
Local Publishable Date2025-06-18
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BAT : ≤ 2g AND ≤ 2 BAT
Tier1
Function OptionStandard
Device Short NameEM3570X
Display Resolution126 x 94 pixels
Energy Efficiency OptimizedFalse
Memory Capacity32 GB
Mounting SupportDIN rail
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeenergy meter
ReturnabilityYes
Software VersionEIME v5.8.1
Tamperproof Of Settingsprotected by access code
Total Lifecycle Carbon Footprint315 kg CO2 eq.
Pep CodeENVPEP2103001EN
Pep Verification Date2021-03-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: INDIA
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
Height Nominal91.4 mm
[Ue] Rated Operational Voltage12...36 V DC
Package Weight(Lbs)370.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 314.9443855138
- Circularity Profile
- ENVEOLI2103001_V1
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2103001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Operating Altitude<= 9842.52 ft (3000 m), <= 9842.52 ft (3000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2103001EN
Ip Degree Of ProtectionIP20 meter:IP40 display:
Packaging Without Single Use PlasticYes
Relative Humidity5-95 %
Pep Verification Date2021-03-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 relay output
Input Attributes
- Analogue Input Type
- low voltage current transformer 0.333 V or 1 V
Number Of Inputs2 digital
