Schneider Electric METSEEM3570ENC enclosure for PowerLogic EM3570 DIN Ethernet meters, degree of protection NEMA 4X

MPN: METSEEM3570ENC
PPN: SCH-METSEEM3570ENC
UNSPSC: 41113708

$255.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

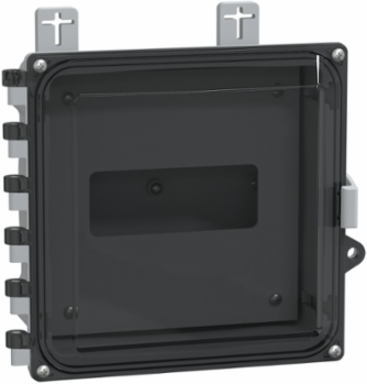

The EM3570ENC enclosure offers a mounting option for Schneider Electric EM357x Series energy meters that helps protect from tampering and the elements. The enclosure is equipped with DIN rail mounting hardware for easy installation and a NEMA 4X rating for durability. The swing panel offer electrical protection and visibility. You can install 1 EM3570 meter with its supply in this enclosure. The lid can be fixed to the housing thanks to 4 screws, providing additional security from unwanted tampering.

Features

NEMA 4x, weather-proofing and durability
Clear front panel for visibility
Adapted to METSEEM3570 meter range
Enclosure include DIN rail mounting hardware

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Pre Comm Date	2024-08-20
Serviceability	No
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Enclosure Mounting	wall mounted
Material	plastic
Product Availability	Stock - Normally stocked in distribution facility
Range	PowerLogic
Sustainable Packaging	No

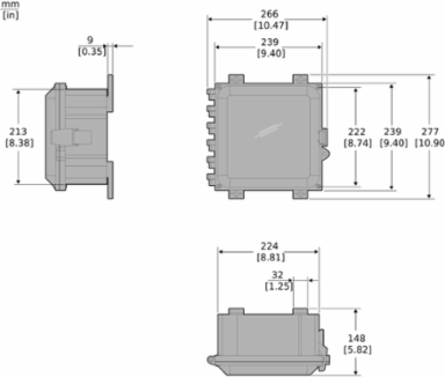

Height Nominal	external: 239 mm
Accessory / Separate Part Category	protection accessory
Customs Code	3926909985

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Residential, Commercial, Industrial
Local Publishable Date	2025-06-18
Return Indicator	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2220
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Door Type	transparent fixed
Energy Efficiency Optimized	False
Number Of Meter Sockets	1
Product Or Component Type	meter box
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	external: 250 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 4X
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Ambient Air Temperature For Operation	-25-70 °C-25-70 °C
Ip Degree Of Protection	IP66
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
