Schneider Electric METSEPM5562MC power meter PowerLogic PM5562, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms, RMICAN seal
Schneider Electric METSEPM5562MC power meter PowerLogic PM5562, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms, RMICAN seal
- MPN: METSEPM5562MC
- UPC: 785901008385
- PPN: SCH-METSEPM5562MC
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3122.32/ EA
Description

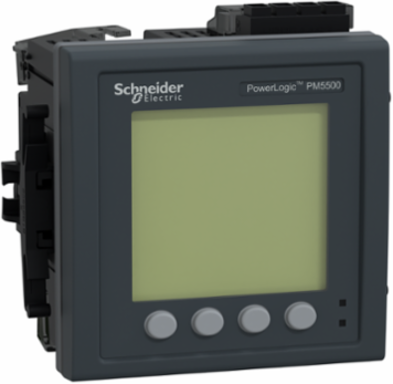

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display and RMICAN approved, factory sealed. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).
Specifications
Complementary
- Network Frequency
- 60 Hz || 50 Hz
- Power Quality Analysis
- up to the 63rd harmonic
- Measurement Voltage
- 20-400 V AC 45...65 Hz between phase and neutral || 20-828 V AC 45...65 Hz between phases
- Memory Capacity
- 1.1 MB
- Standards
- EN 50470-3 || IEC 61557-12:2015 || IEC 62053-22:2020 || IEC 62053-24 || IEC 60529 || EN 50470-1 || UL 61010-1 || IEC 62053-23:2020 || IEC 62052-11:2020 || IEC 62052-31:2015
- Type Of Measurement
- current || voltage || frequency || power factor || energy || active and reactive power
- Frequency Measurement Range
- 45-65 Hz
- Display Resolution
- 128 x 128 pixels
- Net Weight
- 450 g
- Depth
- 72 mm
- Connections - Terminals
- voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || RS485 link screw terminal block4 || digital input screw terminal block8 || digital output screw terminal block4 || Ethernet network RJ45 connector2
- [Us] Rated Supply Voltage
- 100...300 V DC || 90...528 V AC 45...65 Hz
- Measurement Accuracy
- apparent power +/- 0.5 % || frequency +/- 0.05 % || active energy +/- 0.2 % || reactive energy +/- 1 % || active power +/- 0.2 % || voltage +/- 0.1 % || power factor +/- 0.005 || current +/- 0.15 %
- Mounting Support
- framework
- Poles Description
- 3P + N || 3P || 1P + N
- [In] Rated Current
- 1 A || 5 A
- Web Services
- alarm notification by e-mail || diagnostic via predefined web pages || web server || real time viewing of data
- Display Type
- backlit LCD
- Accuracy Class
- class 0.2S active energy IEC 62053-22
- Maximum Power Consumption In Va
- 16 VA 480 V
Communication Port SupportRS485 || ETHERNET
Height96 mm
Sampling Rate128 samples/cycle
Number Of Outputs2 digital
Product CertificationsCE IEC 61010-1 || cULus UL 61010-1 || BTL
Communication Port ProtocolModbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V || JBUS || Modbus TCP/IP 10/100 Mbit/s 2500 V || Ethernet Modbus TCP/IP daisy chain || BACnet IP
Ride-Through Time35 ms 120 V AC typical || 129 ms 230 V AC typical
Number Of Inputs4 digital
Tamperproof Of SettingsRMICAN protected || protected by sealable cover
Measurement Current50-10000 mA
Information Displayedtariff 8)
Mounting Modeflush-mounted
Ethernet ServiceSNTP client || SNMP-Traps
Communication GatewayEthernet/serial
Data Recordingevent logs || maintenance logs || min/max of instantaneous values || data logs || alarm logs || time stamping
Analogue Input Typevoltage (impedance 5 MOhm) || current (impedance <= 0.3 mOhm)
Width96 mm
Device Applicationgateway || WAGES metering || power monitoring || multi-tariff
Metering Typemeasured neutral current || calculated ground current
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310016EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1310016EN
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C non-condensing
- Operating Altitude
- 3000 m
Electromagnetic Compatibilitylimits for harmonic current emissions class A conforming to IEC 61000-3-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022 || limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 || electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 || surge immunity test level 4 conforming to IEC 61000-4-5 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Ambient Air Temperature For Storage-40-85 °C
Ip Degree Of Protectiondisplay IP54 IEC 60529 || rear IP30 IEC 60529
Specifications
- Product Or Component Type
- power meter
- Range
- PowerLogic
Product NamePowerLogic PM5000
Device Short NamePM5562
