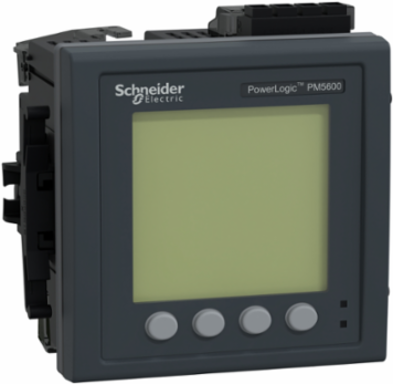

Schneider Electric METSEPM5650 PowerLogic PM5650 Energy Meter, 96mm x 96mm, Class 0.2S Accuracy, 1.1MB Memory

MPN: METSEPM5650
PPN: SCH-METSEPM5650

$3240.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerLogic PM5650 Energy Meter, 96mm x 96mm, Class 0.2S Accuracy, 1.1MB Memory

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India, United States

Depth	72 mm

Communications & Management Attributes

Communication Port Protocol	Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUSModbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP, DNP3 over ethernet
Communication Gateway	Ethernet/serial

Communication Port Support	RS485, ETHERNET

Complementary Attributes

Line Rated Current	1 A, 5 A

Maximum Power Consumption In Va	16 VA 480 V

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Data Recording	event logs, maintenance logs, min/max of instantaneous values, data logs, alarm logs, time stamping
Electromagnetic Compatibility	limits for harmonic current emissions class A conforming to IEC 61000-3-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4surge immunity test level 4 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Market Segment	buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
Measurement Voltage	20-400 V AC 45...65 Hz between phase and neutral, 20-828 V AC 45...65 Hz between phases
Network Frequency	60 Hz, 50 Hz
Power Quality Analysis	up to the 63rd harmonic, waveform capture, voltage sag and swell detection
Web Services	alarm notification by e-mail, web server, diagnostic via predefined web pages, real time viewing of data
Connections - Terminals	voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, RS485 link screw terminal block4digital input screw terminal block8, digital output screw terminal block4Ethernet network RJ45 connector2
Carbon Footprint Of The Distribution Phase [A4]	0.4977166955912595, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.02905858781123483, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	216 kg CO2 eq., 215.9393649880096
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	Yes
Field Service Division	DPIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	2
Function Option	Standard
Compatibility Code	PM5650
Display Resolution	128 x 128 pixels
Energy Efficiency Optimized	False
Information Displayed	tariff 8)
Memory Capacity	1.1 MB
Mounting Support	framework
Product Name	PowerLogic PM5000
Range	PowerLogic
Sampling Rate	128 samples/cycle
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	The main function of the PowerLogic PM5660 Panel-mount Cl0.2 Power Meter is for measurement of 3-phase energy (import & export), Power (active, reactive, apparent), Voltage and Current, THD, Frequency, PF and other power measurement and display power consumption for 10 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	5
Width Nominal	96 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	9028300000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Residential, Commercial, Industrial
Device Application	gateway, WAGES metering, power monitoring, multi-tariff
Ethernet Service	SNTP client, SNMP-Traps
Measurement Accuracy	apparent power +/- 0.5 %frequency +/- 0.05 %active energy +/- 0.2 %reactive energy +/- 1 %, active power +/- 0.2 %voltage +/- 0.1 %power factor +/- 0.005current +/- 0.15 %, reactive power +/- 1 %
Metering Type	measured neutral current, calculated ground current
Number Of Poles	+ N, 3P, 1P + N
Type Of Measurement	current, voltage, frequency, power factor, energy, active and reactive power
[Us] Rated Supply Voltage	100...300 V DC, 90...528 V AC 45...65 Hz
Ride-through Time	35 ms 120 V AC typical129 ms 230 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.434880553940813
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	33 kg CO2 eq., 32.70840168210597
Other Technical Guide Name	PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date	2025-06-18
Stocking Flag	Y
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1909004
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1938
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	PM5650
Display Type	monochrome graphic LCD
Frequency Measurement Range	45-65 Hz
Measurement Current	50-10000 mA
Mounting Mode	flush-mounted
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	power meter
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	251 kg CO2 eq.
Pep Code	ENVPEP1909004EN
Pep Verification Date	2025-09-25
Psr Version	PSR-0005-ed3-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	96 mm
Certificate Agency	CE conforming to IEC 61010-1cULus conforming to UL 61010-1
Package Weight(Lbs)	598.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1909004EN
Ip Degree Of Protection	IP54 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1909004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	250.60942250745887
Circularity Profile	ENVEOLI1909004
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 9842.52 ft (3000 m)<= 9842.52 ft (3000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % 50-50 °C non-condensing
Pep Verification Date	2025-09-25
Psr Version	PSR-0005-ed3-2023 12 08
