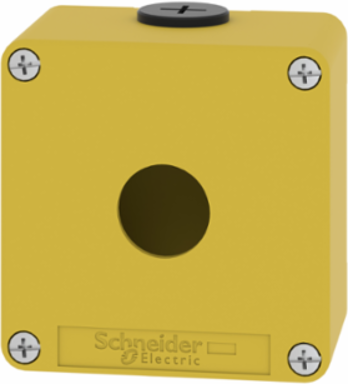

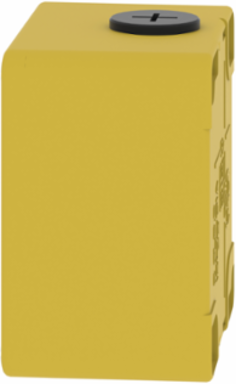

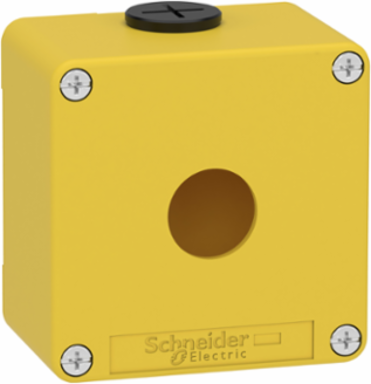

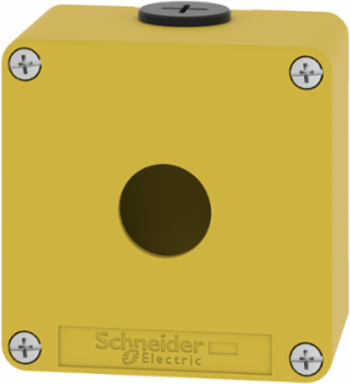

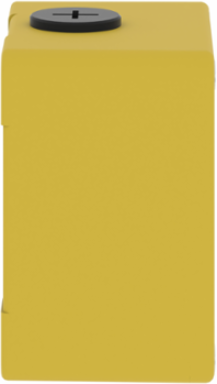

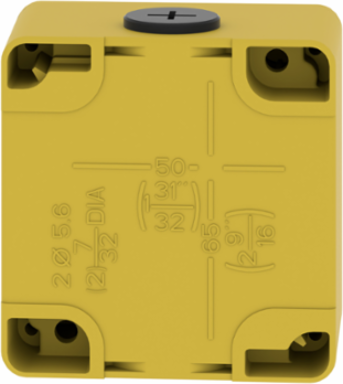

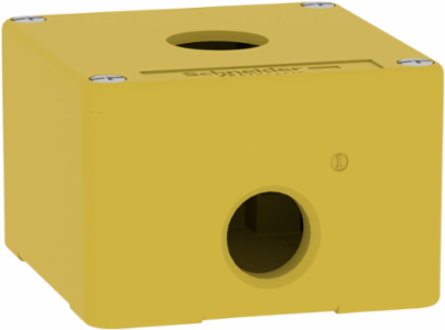

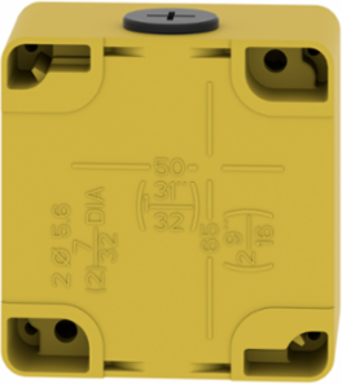

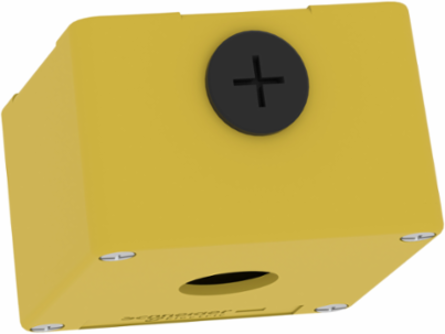

Schneider Electric XAPK1201 Die Cast Control Station, Yellow, 80x80x51.5mm, 1 Cut-Out 22mm
- MPN: XAPK1201
- PPN: SCH-XAPK1201
CAD
$105.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Die Cast Control Station, Yellow, 80x80x51.5mm, 1 Cut-Out 22mm
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Morocco

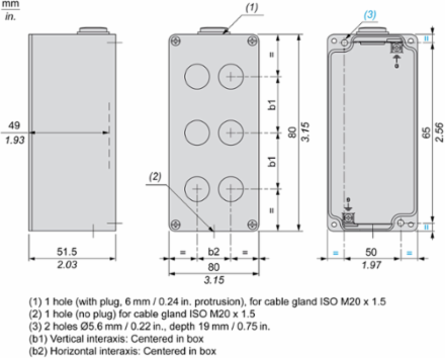

Physical Attributes
- Cad Overall Depth
- 51.5 mm
- Cad Overall Width
- 80 mm
- Usable Depth
- 49 mm
- Color Of Cover
- yellow RAL 1004)
Cad Overall Height80 mm
Product Front Plate Size80 x 80 mm
Color Of Base Of Enclosureyellow RAL 1004)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, cULus, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.050964
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.094
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2114
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Cable Entry
- 2 x cable gland ISO
- Device Short Name
- XAPK
- Material
- die cast zinc
- Number Of Vertical Rows
- 1
- Product Destination
- for Ø 22 mm control and signalling units
- Protective Treatment
- TC
- Resistance To Chemical Agents
- special treatment can be obtained on request
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Color Of Cover
- yellow RAL 1004)
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Recyclability Potential In %
- 70
- Number Of Cut-out
- 1 cut-out
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Total Life Cycle
- 3197.1
- Air Pollution (M3) Distribution [A4]
- 3.112
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 53.823
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 1.0278
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 4.094
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 0.8589
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 69.928
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 72.085
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 1.0344
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 0.1545
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 71.609
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 1.033
- Water Pollution (M3) Manufacturing [A1-a3]
- 310.7
- Water Pollution (M3) End Of Life [C1-c4]
- 5.9215
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.073156, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0017202, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Manufacturing Carbon Footprint4.094
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Station Typemetal
Electrical Shock Protection Classclass I conforming to IEC 61140
Number Of Horizontal Rows1
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typedie-cast empty control station
Range Of ProductHarmony XAP
ReturnabilityYes
Software VersionEIME v5.9.1
Thread TypeM20 x 1.5
Color Of Base Of Enclosureyellow RAL 1004)
Pep CodeENVPEP2309042EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Cut-out DimensionsØ 22 mm
Carbon Footprint (Kg Co2 Eq Total Life Cycle)4.2199
Package Weight(Lbs)541.000 g
Warranty (In Months)18
Air Pollution (M3) Manufacturing [A1-a3]3188.4
Air Pollution (M3) End Of Life [C1-c4]5.5231
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]52.146
Global Warming (Kg.Equivalent.Co2) Total Life Cycle4.2199
Hazardous Waste Disposed Of (Kg) Total Life Cycle1.5591
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle71.763
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]1.033
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]70.248
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]0.7804
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]0.1545
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]69.774
Water Pollution (M3) Total Life Cycle328.92
Water Pollution (M3) Distribution [A4]12.03
Customs Code7907006000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP65 EN/IEC 60529 and EN/IEC 60947-5-1, IP66 EN/IEC 60529 and EN/IEC 60947-5-1, IP69 EN/IEC 60529 and EN/IEC 60947-5-1
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2309042EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309042EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint4.2199
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- die-cast empty control station
Range Of ProductHarmony XAP
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
