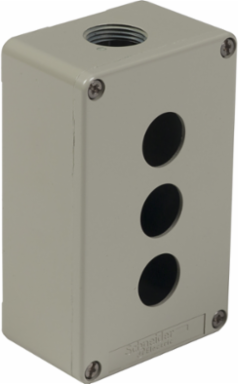

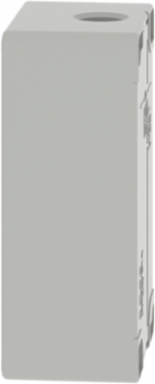

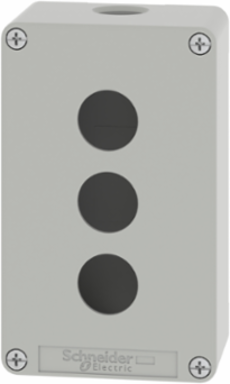

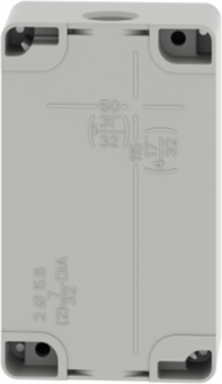

Schneider Electric XAPG29703 Harmony XAP Die Cast Control Station, 3 Cut-Outs, IP65/IP67, 130x80x51.5mm

MPN: XAPG29703
PPN: SCH-XAPG29703
UNSPSC: 39121565

$120.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPG29703 is an empty enclosure with grey color (RAL7032). It has 3 cut-outs of diameter 22mm for 3 functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP67, making it ideal for operation in harsh environments It is compatible with Harmony 22mm range pushbuttons, switches and pilot lights It has a wide range of operating temperatures from -25°C to 70°C. Its dimensions are 130mm height, 80mm wide, 51.5mm deep. It is compatible with the Harmony XB4 and XB5 range of control and signaling units.

Features

Impact and stain resistant enclosure for usage in severe conditions
Allow any type of XB4/XB5 functions, including E-stops with legend plate
Light grey colored base for good visibilty
Can be retrofitted with all 22 mm push-buttons, pilot lights, selector switches and joysticks
IP65 to allow for installation in harsh environment or outdoor
Wide range of operating temperatures from -25°C to 70°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Morocco

Weight	687 g

Physical Attributes

Cad Overall Depth	51.5 mm
Cad Overall Width	80 mm

Cad Overall Height	130 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Cable Entry	cable gland, 1 x cable gland
Carbon Footprint Of The Distribution Phase A4	0.0886387513, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0020842635, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-30
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	XAPG
Device Short Name	XAPG
Number Of Horizontal Rows	3
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	die-cast empty control station
Range Of Product	Harmony XAP
Returnability	Yes
Software Version	EIME v5.9.1
Thread Type	3/4 NPT
Color Of Base Of Enclosure	grey RAL 7032)
Database Version	2016-11
Nbr. Of Units In Pkg.	1
Cut Out Dimensions	Ø 22 mm
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Shock Protection Class	class I conforming to IEC 60536, class I conforming to NF C 20-030
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.0617500317
Carbon Footprint Of The Manufacturing Phase A1 To A3	5 kg CO2 eq., 4.9604550265
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Control Station Type	metal
Material	die cast zinc
Number Of Vertical Rows	1
Product Destination	for Ø 22 mm control and signalling units
Protective Treatment	TH
Resistance To Chemical Agents	special treatment can be obtained on request
Sale Per Indivisible Quantity	1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	5 kg CO2 eq.
Color Of Cover	grey RAL 7032)
Data Source	extrapolated product
Customs Code	7907006000
Number Of Cut Out	3 cut-outs
Functional Unit Description	The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
Functional Unit Unit	Unit

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	5.112928073
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2111017EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2111017EN
Ip Degree Of Protection	IP65 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
