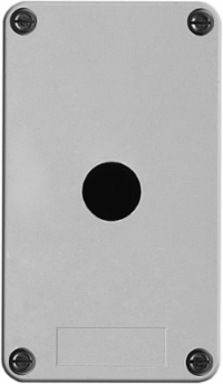

Schneider Electric XAPA1110H2 Harmony XAP Empty Control Station with 1 Cut-Out, Grey, IP65
- MPN: XAPA1110H2
- PPN: SCH-XAPA1110H2
CAD
$109.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for versatility in industrial environments, the Harmony XAP Empty Control Station by Schneider Electric is designed to accommodate a range of control applications with its single cut-out configuration. Crafted in a sleek grey finish, this station not only provides robust protection with an IP65 rating, making it resistant to dust and water ingress, but also complements various settings seamlessly. Ideal for customization, it allows users to install their choice of components, ensuring flexibility in design while maintaining high standards of durability and reliability. This control station is an essential component for any setup requiring efficient control solutions in challenging conditions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Product Front Plate Size
- 85 x 146 mm
- Color Of Base Of Enclosure
- grey
Usable Depth83 mm
Color Of Covergrey
Important Information Attributes
- Overvoltage Category
- class II conforming to IEC 60536, class II conforming to NF C 20-030
- Resistance To Chemical Agents
- high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.06226693059299191
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.307303739892183
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Compatibility Code
- XAPA
- Fire Resistance
- 850 °C NF C 20-455960 °C IEC 92
- Material
- glass reinforced polyester
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- empty control station without hinges
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Color Of Base Of Enclosure
- grey
- Pep Code
- ENVPEP2309042_V1
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Number Of Cut-out
- 1 cut-out
- Package Weight(Lbs)
- 495.0 g
- Warranty (In Months)
- 18
Protective TreatmentTH, TC
Carbon Footprint Of The Distribution Phase [A4]0.06473108995956872, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3871231890161725, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Cable Entryundrilled
Device Short NameXAPA
Flame RetardanceM3 conforming to CSTBVO conforming to UL 94
Number Of Vertical Rows1
Product Destinationfor Ø 22 mm control and signalling units
Range Of ProductHarmony XAP
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Color Of Covergrey
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionControl station comprises a range of buttons, joysticks, and switches carefully assembled for starting and stopping the supply of electric power within a given circuit with life span of 20 years and it has dimensions of 85mm x 226mm x 87mm.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909989
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529IP69 NF C 20-010, IP69K
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2309042_V1
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309042_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint2.821424949460916
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- empty control station without hinges
Range Of ProductHarmony XAP
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
