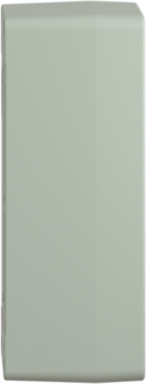

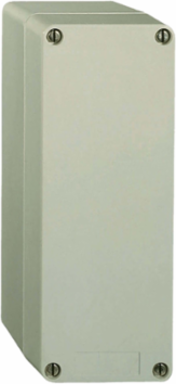

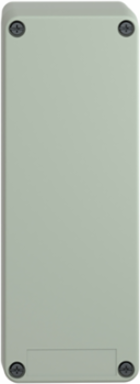

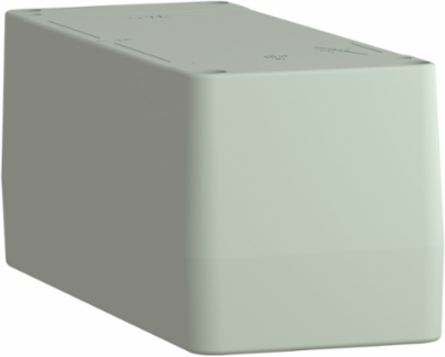

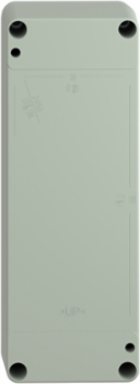

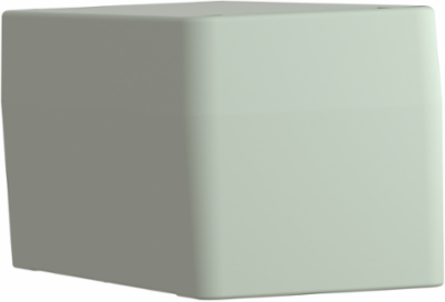

Schneider Electric XAPA2100 Harmony XAP Empty Control Station, 85 x 226 x 87 mm, IP65, Grey
- MPN: XAPA2100
- PPN: SCH-XAPA2100
CAD
$191.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

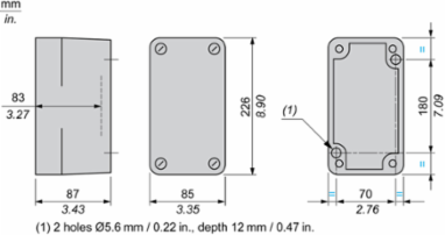

This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4. This Harmony XAPA2100 is an empty plastic control station without opening and without hinges. It is impact resistant, dust resistant, water resistant and vibration resistant. This insulated enclosure is highly resistant to acids, bases, sea water, mineral salts, all solvants, petrol, diesel, oils and greases. Its protection index is IP65. It is made of glass-reinforced polyester material. It weighs 0.600Kg with dimensions 85mm wide, 226mm height, 87mm deep. It is compatible with Harmony XB4 range of control and signalling units.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Product Front Plate Size
- 85 x 226 mm
- Color Of Base Of Enclosure
- grey
Usable Depth83 mm
Color Of Covergrey
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Overvoltage Category
- class II conforming to IEC 60536, class II conforming to NF C 20-030
- Resistance To Chemical Agents
- high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.14934
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.5338
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Cable Entry
- undrilled
- Device Short Name
- XAPA
- Flame Retardance
- M3 conforming to CSTBVO conforming to UL 94
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony XAP
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 7 kg CO2 eq.
- Color Of Cover
- grey
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Control station comprises a range of buttons, joysticks, and switches carefully assembled for starting and stopping the supply of electric power within a given circuit with life span of 20 years and it has dimensions of 85mm x 226mm x 87mm.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 98
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 5.4909
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -1.2781
- Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -1.3166
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 59.114
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 9.6643
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -13.346
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 6.3363
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -3.0372
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 3.0204
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 3.8617
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 63.247
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 10.358
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -17.054
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -3.7086
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3.8617
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 2.1629
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 7.4861
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 10.136
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -9.1837
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- 5.4751
- Customs Code
- 3926909989
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Protective TreatmentTH, TC
Carbon Footprint Of The Distribution Phase [A4]0.15525, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.92847, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-25
Stocking FlagY
Manufacturing Carbon Footprint5.5338
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXAPA
Fire Resistance850 °C NF C 20-455960 °C IEC 92
Materialglass reinforced polyester
Product Or Component Typeempty control station without hinges
ReturnabilityYes
Sustainable PackagingYes
Color Of Base Of Enclosuregrey
Pep CodeENVPEP2309042EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Number Of Cut-outundrilled
Package Weight(Lbs)689.900 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]0.8872
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]5.5338
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle78.4273
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]2.1629
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]7.4861
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]67.761
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-14.457
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]15.368
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-13.4
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]3.8617
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]2.1658
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]7.4872
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]4.1327
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.8617
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]55.252
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]9.6643
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-13.346
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10.136
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]-6.0034
Water Use (M3 Eq) Manufacturing [A1-a3]1.4277
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529IP69 NF C 20-010, IP69K
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2309042EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309042EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint6.766859999999999
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- empty control station without hinges
Range Of ProductHarmony XAP
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
