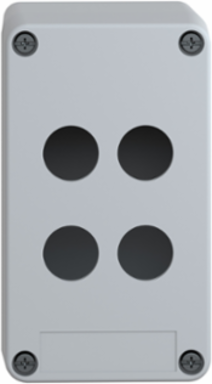

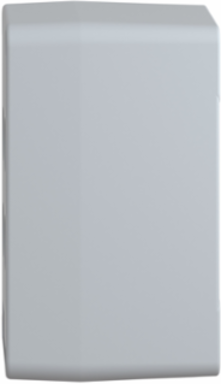

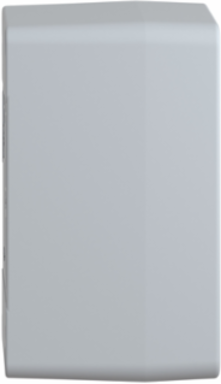

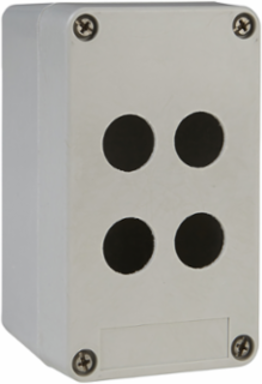

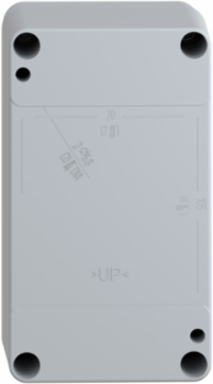

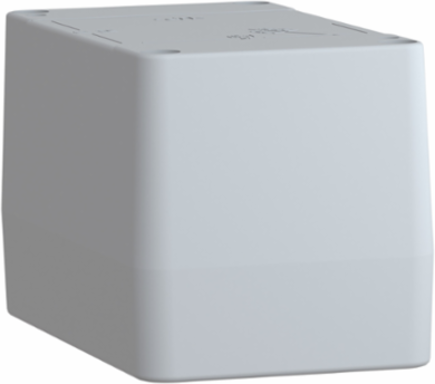

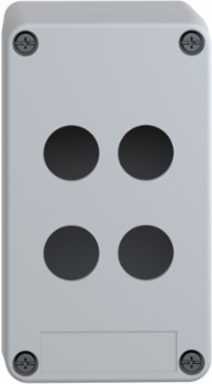

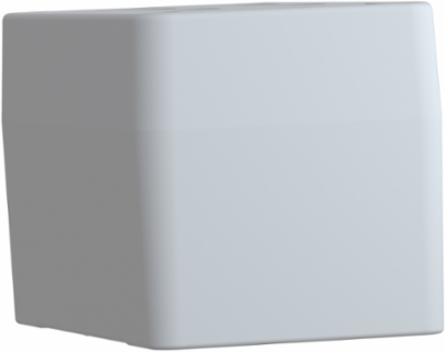

Schneider Electric XAPA1104 Harmony XAP Empty Control Station 4 Cut-Outs, IP65, Grey, 83 mm Depth
Schneider Electric XAPA1104 Harmony XAP Empty Control Station 4 Cut-Outs, IP65, Grey, 83 mm Depth
- MPN: XAPA1104
- PPN: SCH-XAPA1104
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$174.95/ EA
Description
This Harmony XAPA1104 is an empty control station plastic 4 openings in 2 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
Specifications
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class II IEC 60536 || class II NF C 20-030
- Protective Treatment
- TH || TC
Ambient Air Temperature For Storage-40-70 °C
Fire Resistance850 °C NF C 20-455 || 960 °C IEC 92
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2111017EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Number Of Vertical Rows
- 2
- Flame Retardance
- M3 CSTB || VO UL 94
Net Weight0.47 kg
Specifications
- Product Destination
- for Ø 22 mm control and signalling units
- Colour Of Base Of Enclosure
- grey
- Cable Entry
- undrilled

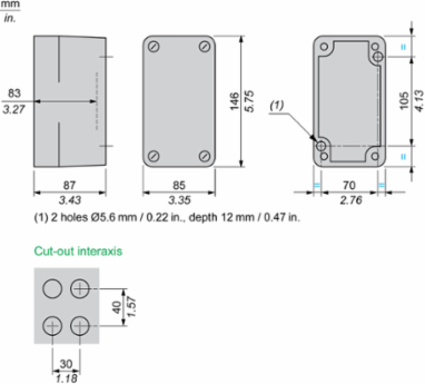

- Product Front Plate Size
- 85 x 146 mm
- Ip Degree Of Protection
- IP65 IEC 60529 || IP69 NF C 20-010 || IP69K
- Number Of Cut-Out
- 4 cut-outs
- Resistance To Chemical Agents
- high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
Range Of ProductHarmony XAP
Device Mountingflush
Product Or Component Typeempty control station without hinges
Materialglass reinforced polyester
Colour Of Covergrey
Usable Depth83 mm
Device Short NameXAPA
