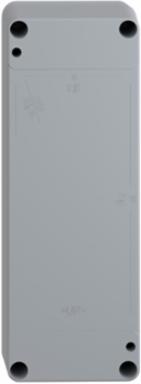

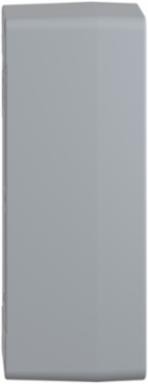

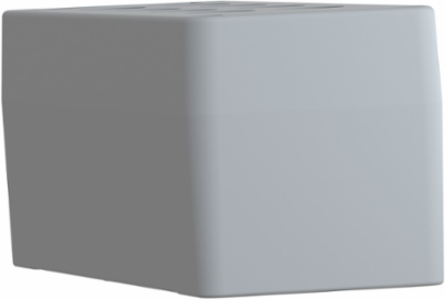

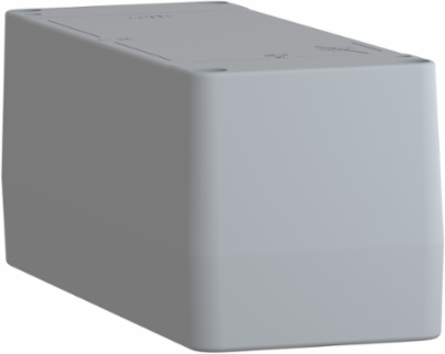

Schneider Electric XAPA2108 Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 8 cut outs, 22mm
Schneider Electric XAPA2108 Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 8 cut outs, 22mm
- MPN: XAPA2108
- PPN: SCH-XAPA2108
- UNSPSC: 39121565
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$273.35/ EA
Description

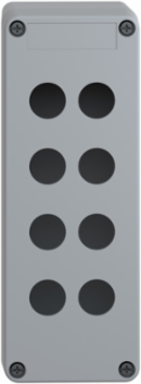

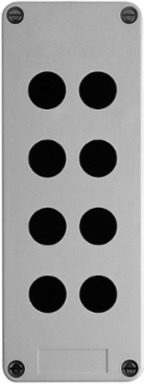

This Harmony XAPA2108 is an empty control station plastic 8 openings in 2 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
Features
- Empty stations for customer assembly with 1 to 10 holes depending on the model
- Operating simplicity, flexibility, and robustness
- Full compatibility with Harmony XB4 or Harmony XB5 pushbutton ranges
- Metal offer for use in a wide range of environments
- Pre-drilled or undrilled zinc or aluminium alloy enclosures
- A large set of accessories to customize your panels
- Wide range of operating temperature from -40°C to 70°C
Specifications
Physical Attributes
- Color Of Base Of Enclosure
- grey

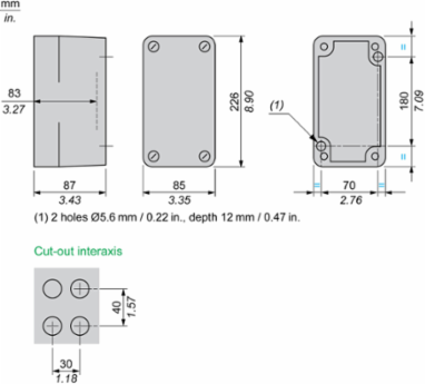

- Product Front Plate Size
- 85 x 226 mm
Color Of Covergrey
Usable Depth83 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fire Resistance
- 850 °C NF C 20-455, 960 °C IEC 92
- Overvoltage Category
- class II conforming to IEC 60536, class II conforming to NF C 20-030
- Carbon Footprint Of The Distribution Phase A4
- 0.08996967654986524, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.5380621293800539, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Data Status
- Publishable
- Manufacturer
- Square D
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Color Of Base Of Enclosure
- grey
- Compatibility Code
- XAPA
- Material
- glass reinforced polyester
- Package Weight Lbs
- 670.000 g
- Product Destination
- for Ø 22 mm control and signalling units
- Range Of Product
- Harmony XAP
- Sustainable Packaging
- Yes
- Medium Desc
- Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 8 cut outs, 22mm
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Control station comprises a range of buttons, joysticks, and switches carefully assembled for starting and stopping the supply of electric power within a given circuit with life span of 20 years and it has dimensions of 85mm x 226mm x 87mm.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Flame RetardanceM3 conforming to CSTB, VO conforming to UL 94
Protective TreatmentTH, TC
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.08654474393530998
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 3.2069191374663073
Resistance To Chemical Agentshigh resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water
Local Publishable Date2026-01-12
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cable Entryundrilled
Color Of Covergrey
Device Short NameXAPA
Number Of Cut Out8 cut-outs
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeempty control station without hinges
ReturnabilityYes
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Stocking FlagN
Pep CodeENVPEP2309042_V1
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP65 IEC 60529, IP69 NF C 20-010, IP69K
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Environmental Disclosure
- ENVPEP2309042_V1
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint3.9214956873315368
Ambient Air Temperature For Storage-40-70 °C
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2309042_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- empty control station without hinges
Range Of ProductHarmony XAP
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
