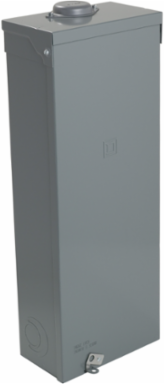

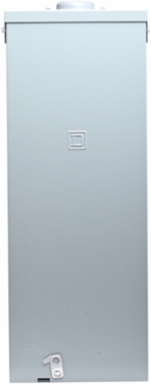

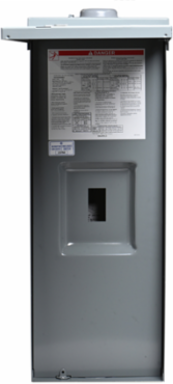

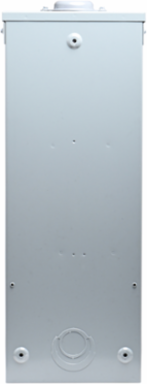

Square D Q23225NRBC PowerPacT Q Circuit Breaker Enclosure, 225A, 3 Pole, NEMA 3R

MPN: Q23225NRBC
UPC: 785901993681
PPN: SCH-Q23225NRBC

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$996.91/ EA

Qty:

Loading add to cart quantity...

Description

The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. PowerPact Q-frame circuit breakers are rated for 240 VAC (208Y/120 VAC for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This steel NEMA 3R rainproof enclosure is for 2 or 3 pole QDL, QBL, QGL and QJL PowerPact Q circuit breakers. Enclosure is 26.26 inches tall, 9.88 inches wide and 5.51 inches deep.

Specifications

Complementary

Product Certifications: CSA || UL

Circuit Breaker Type: QBL || QGL || QJL

[In] Rated Current: 225 A

Width: 251 mm

Height667 mm

Poles Description3P || 2P

Enclosure Materialsteel

Depth140 mm

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1408006EN

Pvc Free: Yes

Eu Rohs Directive: Compliant

Halogen Content Performance: Halogen free plastic parts product

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Range Of Product: PowerPact Q

Product Or Component Typeenclosure
