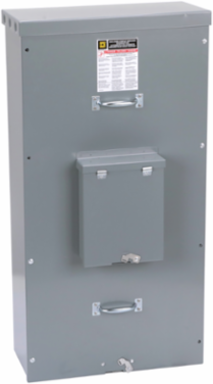

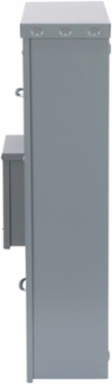

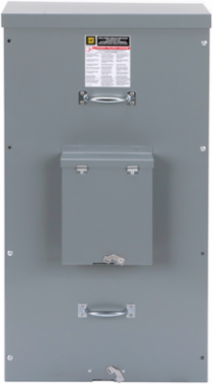

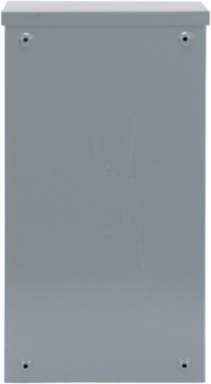

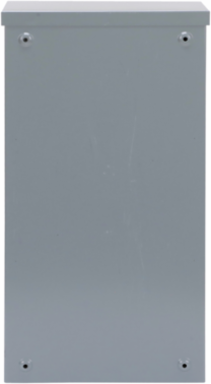

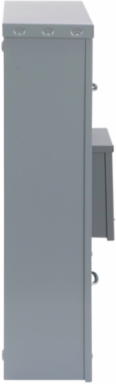

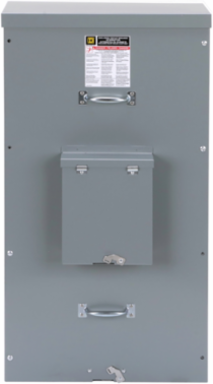

Square D M800R PowerPacT 300A-800A Circuit Breaker Enclosure, 2 & 3 Pole, NEMA 3R, Steel
- MPN: M800R
- UPC: 785901658511
- PPN: SCH-M800R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

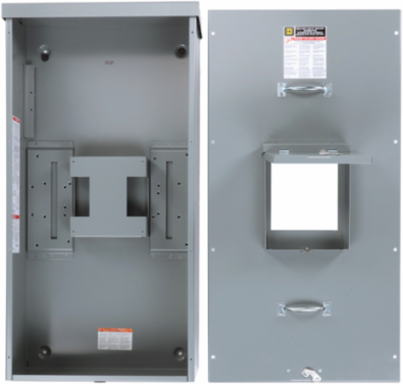

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers. The M800R and the P1200R enclosures have a blank top end wall and require field-cut openings. This is a PowerPact M,Molded Case Circuit Breaker Enclosure, 300A to 800A, TYPE 3R. This enclosure is made from steel. This enclosure complies to UL & CSA certifications. The dimensions are 1025.52 mm (H), 533.4 mm (W), 247.65 mm (D). This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth247.65 mm
Complementary Attributes
- Line Rated Current
- 300-800 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Type
- PJL, MGL, PKL, MJL, PLL, PGL
- Product Destination
- circuit breaker M 2P, circuit breaker P 3P
- Carbon Footprint Of The Distribution Phase [A4]
- 12.83104911481045, 13 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.07447490472516331, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Enclosure Material
- steel
- Product Availability
- Stock - Normally stocked in distribution facility
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 336 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 95
- Width Nominal
- 533.4 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Number Of Poles2P, 3P
Certificate AgencyCSA, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]64 kg CO2 eq., 63.52645228256723
Carbon Footprint Of The Manufacturing Phase [A1 To A3]259 kg CO2 eq., 259.33644289234655
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP1408006EN
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal1025.52 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)44.45 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 335.7684191944494
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 3R
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1408006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1408006EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
