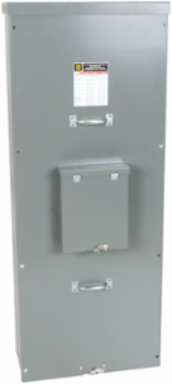

Square D P1200R Circuit Breaker Enclosure, 600-1200A, NEMA 3R, Steel, 1324 mm H x 534 mm W x 248 mm D

MPN: P1200R
UPC: 785901474937
PPN: SCH-P1200R
UNSPSC: 39121616

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This is a circuit breaker enclosure for PowerPacT P. This enclosure has a NEMA 3R rating of protection. This enclosure accepts either 2 pole or 3 pole circuit breakers. With a rated current of 600A to 1200A. This enclosure is made of steel. Dimensions for this product are 1323.98 mm (H), 533.4 mm (W), 247.65 mm (D). This product complies with UL and CSA standards.

Features

PowerPacT P circuit breaker enclosure 600 to 1200A rated
NEMA type 3R enclosure for rainproof applications
Enclosure assepts PGL, PJL, PKL, PLL 2 and 3 poles circuit breakers
The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed
Circuit breakers are ordered and shipped separately for field installation
The enclosures are not compatible with earth-leakage or ground-fault modules.
P-frame circuit breakers with MicroLogic trip units can be used with these enclosures with some limitations.
PowerPacT H Type 1, 3, 4X and 12 enclosures are UL Listed to UL489 and CSA C22.2 No.5

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	247.65 mm

Weight	53524 g

Complementary Attributes

Line Rated Current	600-1200 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Circuit Breaker Type	PJL, PGL, PKL, PLL
Product Destination	circuit breaker P 3P, circuit breaker P 2P
Carbon Footprint Of The Distribution Phase A4	15.46777191038546, 15 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.08977916217364057, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-11-13
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Enclosure Material	steel
Product Availability	Stock - Normally stocked in distribution facility
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	405 kg CO2 eq.
Database Version	2024-01
Height Nominal	1323.98 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	95

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Number Of Poles	3P, 2P
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	77 kg CO2 eq., 76.58085207144433
Carbon Footprint Of The Manufacturing Phase A1 To A3	313 kg CO2 eq., 312.6289137245486
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	533.4 mm
Customs Code	7326908688
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	404.76731686855203
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 3R
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1408006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP1408006EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-25
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
