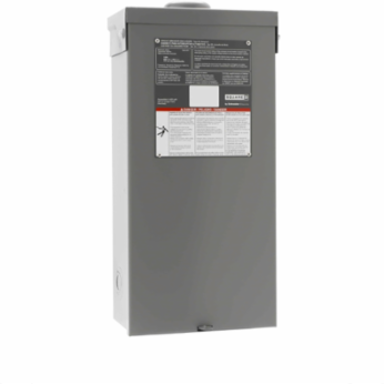

Square D B125RB Circuit Breaker Enclosure, 15A-125A, 2/3 Pole, NEMA 3R, Steel

MPN: B125RB
UPC: 785901280538
PPN: SCH-B125RB
UNSPSC: 39121318

$1550.43

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact B circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure accepts 2 or 3 pole PowerPacT B breakers that have a current rating of 15 to 125A. This enclosure is NEMA 3R rated enclosure. This enclosure is suitable as service entrance device. The short circuit current rating of the enclosure is equal to the rating of the circuit breaker installed unless otherwise noted. This device has a height of 18.01 inch, width of 8.88 inch and depth of 4.88 inch. It is UL 489 Listed and CSA certified. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover

Features

PowerPacT B circuit breaker enclosure 15 to 125A rated
NEMA type 3R enclosure for rainproof applications
Enclosure assepts BDL, BGL, BJL 2 and 3 poles breakers or BKL 2 poles breakers
The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed
Circuit breakers are ordered and shipped separately for field installation
This enclosures are suitable for US service entrance equipment only
PowerPacT B Type 1, 3, 4X and 12 enclosures are UL Listed to UL489 and CSA C22.2 No.5

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	124 mm

Weight	6111 g

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	46.21353174993876
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 3R
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1408006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP1408006EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-25
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Product Destination	110-125 A, 15-30 A, circuit-breaker B 2P or 3P 15-100 A, circuit-breaker B 2P or 3P 110-125 A, circuit-breaker B 2P 15-30 A
Carbon Footprint Of The End Of Life Phase C1 To C4	9 kg CO2 eq., 8.743471844566855
Carbon Footprint Of The Manufacturing Phase A1 To A3	36 kg CO2 eq., 35.69380636295338
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Enclosure Material	steel
Product Availability	Stock - Normally stocked in distribution facility
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	46 kg CO2 eq.
Database Version	2024-01
Height Nominal	457 mm
Certificate Agency	UL Listed
Customs Code	7326908688
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	1.7660031788424924, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.010250363576024168, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Circuit Breaker Type	B-Frame
Energy Efficiency Optimized	False
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	226 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	95
