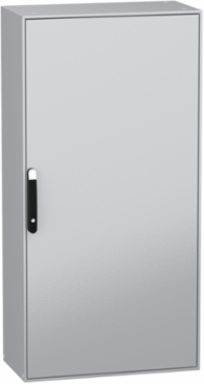

Schneider Electric NSYSM16840 Spacial SM Compact Steel Enclosure 1600x800x400 mm, IP55, IK10
Schneider Electric NSYSM16840 Spacial SM Compact Steel Enclosure 1600x800x400 mm, IP55, IK10
- MPN: NSYSM16840
- PPN: SCH-NSYSM16840
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2059.60/ EA
Description

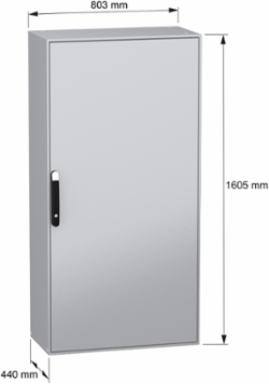

Spacial SM monobloc compact steel enclosure with plain front door. 1600 x 800 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 800 mm
Enclosure Nominal Height1600 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- front part forming a rigid frame with welded corners, single piece body with welded rear panel
- Material
- body sheet steel, door sheet steel, hinge zamak
- Carbon Footprint Of The Distribution Phase A4
- 153.59054877856104, 154 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 11.855540261311965, 12 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Type
- Solid
- Lock Type
- 4 points lock, handle with 5 mm double bar insert
- Number Of Doors
- front 1
- Product Name
- PanelSeT SM
- Range
- PanelSeT
- Software Version
- v6.2.2
- Sustainable Packaging
- No
- Type Of Gland Plate
- standard
- Pep Code
- ENVPEP2501030_V1
- Pep Verification Date
- 2025-02-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity origin
- Energy Model End Of Life C1 C4 2
- Electricity origin
- Offer Owner Code
- 190789
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate bracket, 1 door
Removable Partsdoor by screws hinge, mounting plate bracket by screws
Carbon Footprint Of The End Of Life Phase C1 To C4190 kg CO2 eq., 190.38540070424904
Carbon Footprint Of The Manufacturing Phase A1 To A3174 kg CO2 eq., 173.64461557217692
Certificate AgencyDNV, UL, BV
Local Publishable Date2026-04-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entry1 entry
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecompact enclosure
ReturnabilityYes
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint529 kg CO2 eq.
Warranty In Months18
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit UnitUnit
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Spain, ES
Energy Model Use B6 2Electricity origin
Recyclability Potential In 289
Pn1
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 529.4761053162989
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2501030_V1
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2501030_V1
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
