End cap, I-Line Busway, 225A, 600VAC, 3 phase, 4 wire [TAA]
Square D

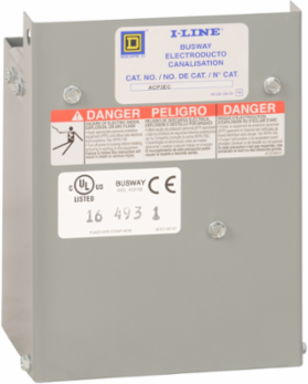

Square D ACP2EC End cap, I-Line Busway, 225A, 600VAC, 3 phase, 4 wire [TAA]

  • MPN: ACP2EC
  • UPC: 785901263883
  • PPN: SCH-ACP2EC

CAD

$1072.35

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This end cap is rated 225A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to cap off the end of a busway run. This end cap can be used with aluminum and copper busways. This end cap meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Compliance|TAA Compliant | BAA Compliant via COTS

Important Information Attributes

Persona Type Ids
LC, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Certificate Agency
UL 857CSA C22.2 No 27:1994, IEC 61439-6
Local Publishable Date
2025-11-19
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
At least in Europe
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
1911
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Energy Efficiency Optimized
False
Product Destination
busbar trunking 225-225 A aluminium/copper end caps
Range Of Product
I-Line
Sustainable Packaging
No
Pep Code
ENVPEP1407015EN
Length Total
3.95 in
[Ue] Rated Operational Voltage
600 V AC/DC 50/60 Hz
Package Weight(Lbs)
1.243 kg
Warranty (In Months)
18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component TypeEnd Closure
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal6.1 in
Width Nominal2.66 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8547900040

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Environmental Disclosure
ENVPEP1407015EN
Packaging Made With Recycled Cardboard
Yes
Reach Free Of Svhc
Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1407015EN

General Attributes

Product Or Component Type
End Closure
Range Of ProductI-Line

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
