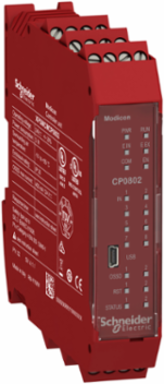

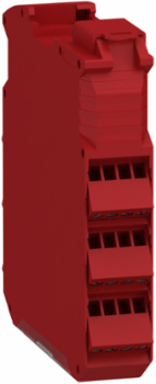

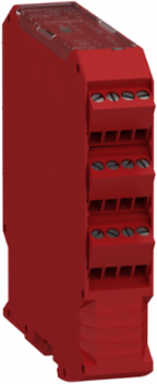

Schneider Electric XPSMCMCP0802 Modicon Safety Controller CPU, 8 Inputs, 2 Outputs, 24V DC, IP20

MPN: XPSMCMCP0802
PPN: SCH-XPSMCMCP0802

$835.92

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Modicon Safety Controller CPU, 8 Inputs, 2 Outputs, 24V DC, IP20

Features

Serving as the master CPU for the Preventa XPSMCM series, this safety controller allows you to seamlessly connect up to 14 expansion modules via a proprietary communication backplane. This highly scalable architecture eliminates the expensive need to purchase entirely new hardware when upgrading your automated machinery, allowing you to easily snap on extra I/O blocks for new light curtains, E-stops, or safety interlocks as your facility's needs evolve.
Out of the box, this compact base module is equipped with 8 robust digital safety inputs and 2 dual-channel OSSD (solid-state) safety outputs, alongside 2 dedicated status diagnostic outputs. This generous onboard capacity is perfect for managing the complete safety loop of small-to-medium industrial machines natively, saving critical DIN-rail real estate in your main control panel while drastically reducing complicated point-to-point hardwiring.
Engineered to provide ultimate operator protection, this safety PLC achieves up to Performance Level e (PL e) Category 4 according to EN/ISO 13849-1 and Safety Integrity Level 3 (SIL 3) per IEC 61508. Integrating this thoroughly tested, certified component guarantees your custom manufacturing equipment complies with OSHA and global machinery directives, mitigating severe workplace hazards and protecting your operation from costly compliance liabilities.
Commissioning is incredibly intuitive thanks to Schneider Electric s SoSafe Configurable software, which uses a streamlined graphical interface loaded with pre-certified, drag-and-drop safety function blocks. Accessible via a standard mini-USB connection on the front face, this user-friendly environment slashes engineering time, allowing automation specialists to rapidly map out, simulate, and validate safety configurations without writing a single line of intricate code.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Italy, United States

Depth	114.5 mm

Complementary Attributes

Integrated Connection Type	backplane expansion bus, USB 2.0 port

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Cable Cross Section	0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-1.5 mm² - 23 AWG...16 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
Local Signalling	1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable8 LEDs yellow IN input status2 LEDs green/red OUT output status2 LEDs yellow RST restart signal2 LEDs yellow STATUS output channel
Safety Reliability Data	PFHd = 6.06E-9 1/h, DC > 99 %MTTFd < 100 years high
Certificate Agency	cULus, RCM, TÜV
Local Publishable Date	2026-03-26
Stocking Flag	Y
Device Type	PLC System - PLC CPU
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	e
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Device Short Name	XPSMCM
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation	250 V AC between power supply and housing IEC 61800-5-1
Mounting Support	omega 35 mm DIN rail EN 50022
Power Dissipation In W	3 W
Product Or Component Type	safety controller CPU
Range Of Product	Modicon Safety automation
Service Life	20 year(s)
Sustainable Packaging	No
Height Nominal	99 mm
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 61800-5-1
Connections - Terminals	6 captive screw terminals, removable terminal block
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109160

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module	emergency stop ISO 13850guard monitoring EN/ISO 14119enabling switch monitoring IEC 60947-5-1light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1, magnetic switch monitoring EN/ISO 14119two-hand control EN 574, safety mat monitoring EN/ISO 14119, enabling switch monitoring IEC 61326-1, muting function of light curtains IEC 60947-5-1counter functions IEC 61800-5-2, speed monitoring IEC 61800-5-2
Safety Level	can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
Vibration Resistance	+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1847
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Data Storage Equipment	SD card optional)
Electrical Connection	screw terminal
Inductive Load	30 mH
Load Capacitance	0.82 µF
Overvoltage Category	II
Product Availability	Stock - Normally stocked in distribution facility
Quality Labels	CE
Returnability	Yes
Shock Resistance	10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	22.5 mm
[Us] Rated Supply Voltage	24 V - 20...20 % DC
Maximum Number Of I/O Expansion Module	14 128 input14 16 output
Package Weight(Lbs)	249.476 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C, -10-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-20-85 °C, -20-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	10-95 %

General Attributes

Product Or Component Type	safety controller CPU

Range Of Product	Modicon Safety automation

ETIM

ETIM 8	EC001449

ETIM 9	EC001449

Output Attributes

Number Of Outputs	safety outputs OSSD contactor/drive connection, 4 test line control outputs configurable diagnostic connection, 2
Discrete Output Type	PNP

Discrete Output Current	400 mA

Input Attributes

Discrete Input Type	safety input, PNP
Discrete Input Current	400 mA
Number Of Inputs	8 digital input connection2 digital interlock start/restart or external device monitoring
