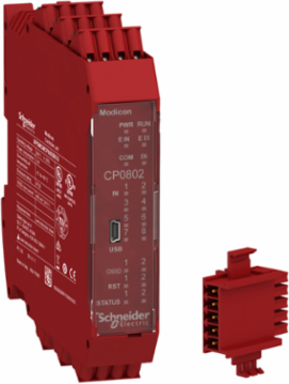

Schneider Electric XPSMCMCP0802BCG Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20

  • MPN: XPSMCMCP0802BCG
  • PPN: SCH-XPSMCMCP0802BCG
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $893.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Italy, United States
    Depth114.5 mm

    Complementary Attributes

    Integrated Connection Typebackplane expansion bus, USB 2.0 port

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.25-2.5 mm² - 23 AWG...14 AWG solid without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
    Kit Composition1 safety controller CPU, 1 backplane expansion connector
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Connections - Terminals1 spring terminals, removable terminal block, 2 spring terminals, removable terminal block
    Local Publishable Date2025-11-25
    Stocking FlagY
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Device Short NameXPSMCM
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Mounting Supportomega 35 mm DIN rail EN 50022
    Power Dissipation In W3 W
    Product Or Component Typemodular safety controller CPU kit
    Range Of ProductModicon Safety automation
    Service Life20 year(s)
    Sustainable PackagingNo
    Height Nominal99 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
    Maximum Number Of I/O Expansion Module14 128 input14 16 output
    Package Weight(Lbs)256.0 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Modulelight curtain monitoring EN/ISO 14119, emergency stop ISO 13850guard monitoring EN/ISO 14119enabling switch monitoring IEC 60947-5-1light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1switch monitoring EN 574, two-hand control EN/ISO 14119safety mat monitoring IEC 61326-1, switch monitoring IEC 61800-5-2, muting function of light curtains IEC 61800-5-2, safety time delays, counter functions
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable8 LEDs yellow IN input status2 LEDs green/red OUT output status2 LEDs yellow RST restart signal2 LEDs yellow STATUS output channel
    Safety Reliability DataPFHd = 6.06E-9 1/h, DC > 99 %MTTFd < 100 years high
    Certificate AgencyTÜV, RCM, cULus
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2017
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Data Storage EquipmentSD card optional)
    Electrical Connectionspring terminal
    Inductive Load30 mH
    Load Capacitance0.82 µF
    Overvoltage CategoryII
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityNo
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal22.5 mm
    [Us] Rated Supply Voltage24 V - 20...20 % DC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109160

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-55 °C, -10-55 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %

    General Attributes

    Product Or Component Typemodular safety controller CPU kit
    Range Of ProductModicon Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 9EC001449

    Output Attributes

    Number Of Outputssafety outputs OSSD contactor/drive connection, 4 test line control outputs configurable diagnostic connection, 2
    Discrete Output TypePNP
    Discrete Output Current400 mA

    Input Attributes

    Discrete Input TypePNP, safety input
    Discrete Input Current400 mA
    Number Of Inputs8 digital input connection2 digital interlock start/restart or external device monitoring
    Synchronisation Time Between Inputs< 0.5 ms, < 0.5 ms
    Discrete Input Voltage24 V

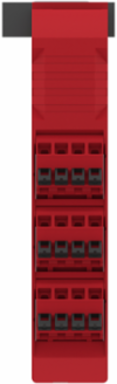

    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20

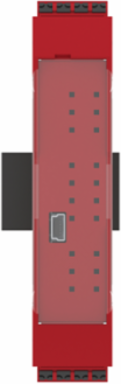

    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20

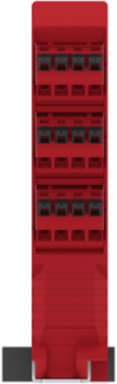

    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20

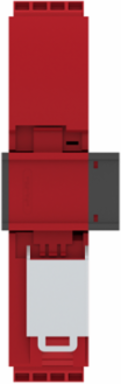

    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20

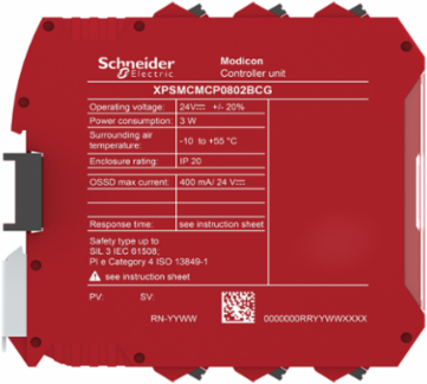

    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20
    Modicon MCM Safety Controller CPU with 8 Inputs, 2 Outputs, IP20
