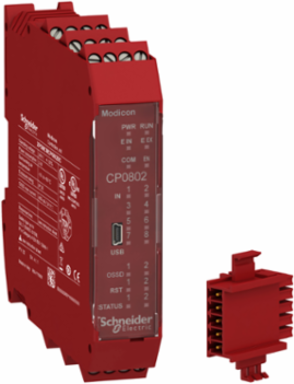

Schneider Electric XPSMCMCP0802BC Modicon MCM Safety Controller, 8 Inputs, 24V DC, IP20

  • MPN: XPSMCMCP0802BC
  • PPN: SCH-XPSMCMCP0802BC
  • UNSPSC: 32151705
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $893.72

    / EA

    Available to Order from Manufacturer

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon MCM Safety Controller, 8 Inputs, 24V DC, IP20

    Features

    • Modular safety controller are designed to provide safety solutions requiring conformity to PLe and SIL3
    • Reduce time-to-market: Offers designed specifically meeting the 6 safety functions required on your machine
    • Modicon MCM offers an extensive range of safety products designed to provide protection for personnel and equipment
    • Modicon MCM safety controller are designed for monitoring multiple safety functions
    • Increase profitability: Safety designed from standalone components to embedded safety network solutions
    • Improve efficiency: One partner for the complete safety chain covering the complete range of safety functions
    • Simplify integration: Wide range of connections for machine controllers

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginItaly
    Depth114.5 mm
    Weight260 g

    Complementary Attributes

    Integrated Connection Typebackplane expansion bus, USB 2.0 port
    Us Rated Supply Voltage24 V - 20...20 % DC
    Uimp Rated Impulse Withstand Voltage4 kV IEC 61800-5-1

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-1.5 mm² - 23 AWG...16 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Kit Composition1 safety controller CPU, 1 backplane expansion connector
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Certificate AgencyRCM, cULus, TÜV
    Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.3171330207158545
    Carbon Footprint Of The Manufacturing Phase A1 To A317 kg CO2 eq., 17.428503591143823
    Local Data StatusPublishable
    Return IndicatorN
    ServiceabilityYes
    Field Service DivisionIDIBS
    Use Carbon Footprint143.615
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Data Storage EquipmentSD card optional)
    Electrical Connectionscrew terminal
    Inductive Load30 mH
    Load Capacitance0.82 µF
    Overvoltage CategoryII
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityNo
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal22.5 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Moduleemergency stop ISO 13850guard monitoring EN/ISO 14119enabling switch monitoring IEC 60947-5-1light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1, magnetic switch monitoring EN/ISO 14119two-hand control EN 574, safety mat monitoring EN/ISO 14119, enabling switch monitoring IEC 61326-1, muting function of light curtains IEC 60947-5-1counter functions IEC 61800-5-2, speed monitoring IEC 61800-5-2
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable8 LEDs yellow IN input status2 LEDs green/red OUT output status2 LEDs yellow RST restart signal2 LEDs yellow STATUS output channel
    Safety Reliability DataPFHd = 6.06E-9 1/h, DC > 99 %MTTFd < 100 years high
    Connections Terminals2 captive screw terminals, removable terminal block, 1 captive screw terminals, removable terminal block
    Carbon Footprint Of The Distribution Phase A40.03399893156051523, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.16668427613224907, 0.2 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6144 kg CO2 eq., 143.615
    Local Publishable Date2026-08-06
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Device Short NameXPSMCM
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Mounting Supportomega 35 mm DIN rail EN 50022
    Power Dissipation In W3 W
    Product Or Component Typemodular safety controller CPU kit
    Range Of ProductModicon Safety automation
    Service Life20 year(s)
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint162 kg CO2 eq.
    Database Version2022-01
    Height Nominal99 mm
    Maximum Number Of I/O Expansion Module14 128 input14 16 output
    Customs Code8538908180
    Functional Unit DescriptionTo monitor and proccess safety sensor signals and provide status information on fieldbusses at 4W during 10 years with a 100% use rate.
    Functional Unit Unitunit
    Energy Consumption On Product Lifetime In Kwh350.4

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-55 °C, -10-55 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2403021_V1
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP2403021_V1
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint161.56131981955247
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %
    Pep Verification Date2026-09-28
    Psr Version0

    General Attributes

    Product Or Component Typemodular safety controller CPU kit
    Range Of ProductModicon Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 10EC001449
    ETIM 9EC001449

    Output Attributes

    Number Of Outputssafety outputs OSSD contactor/drive connection, 4 test line control outputs configurable diagnostic connection, 2
    Discrete Output TypePNP
    Discrete Output Current400 mA

    Input Attributes

    Discrete Input TypePNP, safety input
    Discrete Input Current400 mA
    Number Of Inputs8 digital input connection2 digital interlock start/restart or external device monitoring
    Synchronisation Time Between Inputs< 0.5 ms, < 0.5 ms
    Discrete Input Voltage24 V
