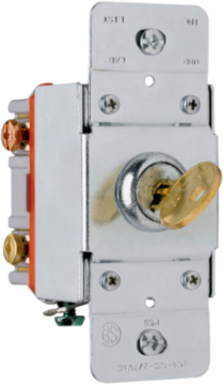

Pass & Seymour PS20AC3KL Extra Heavy Duty 3-Way Key Lock Switch, 20A 120/277V, 3.281 Inch Height
- MPN: PS20AC3KL
- UPC: 785007195675
- PPN: P-S-PS20AC3KL
CAD
$258.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Extra Heavy Duty 3-Way Key Lock Switch, 20A 120/277V, 3.281 Inch Height
Features
- Back and side wired. Accepts #14 - #10 AWG. Operated by cam lock for maximum security in critical areas. Recommended for tamper-proof installation in schools, public housing, trailer parks, freight yards, etc.
- Uses same key as Cat.# 4600 cast enclosure. Key can be removed in both positions.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.073 in
- Height
- 3.281 in
- Material
- Stainless Steel
- Product Line
- Pass & Seymour
- Load Type
- CFL
- Standard
- UL 20
- Load Type
- Xenon
- Voltage
- 120.0 V
- Standard
- FEDSPEC
- Number of Gangs
- 1
- Indoor/Outdoor
- Indoor
- Number of Poles
- 3-Way
- Mounting Type
- Wall Box
- Wall Plate Included
- No
- Requires Neutral Wire
- No
- Application Sector
- Industrial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- High strength toggle, heavy duty toggle bumpers, locking support
FinishMatte
Width1.32 in
Country of OriginMexico
TypeSwitch
Load TypeLED
Amperage20.0 A
Switch TypeKey
FeaturesLocking
Load TypeHalogen
Load TypeUniversal
Load TypeFluorescent
Load TypeIncandescent
Number of Switches1.0
Throw TypeDouble Throw
Application SectorCommercial
Load Rating20 A @ 120/277 VAC
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
