Documentation & Downloads

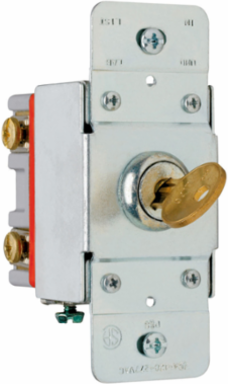

Pass & Seymour PS20AC2KL Extra Heavy Duty Key Lock Security Switch, 20A 120/277V, 1.073 Inch Depth
- MPN: PS20AC2KL
- UPC: 785007195668
- PPN: P-S-PS20AC2KL
CAD
$264.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Extra Heavy Duty Key Lock Security Switch, 20A 120/277V, 1.073 Inch Depth
Features
- Back and side wired. Accepts #14 - #10 AWG. Operated by cam lock for maximum security in critical areas. Recommended for tamper-proof installation in schools, public housing, trailer parks, freight yards, etc.
- Uses same key as Cat.# 4600 cast enclosure. Key can be removed in both positions.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.073 in
- Material
- Stainless Steel
- Product Line
- Pass & Seymour
- Type
- Switch
- Load Type
- LED
- Amperage
- 20.0 A
- Switch Type
- Key
- Features
- Locking
- Load Type
- Halogen
- Load Type
- Universal
- Load Type
- Fluorescent
- Mounting Type
- Wall Box
- Wall Plate Included
- No
- Requires Neutral Wire
- No
- Application Sector
- Commercial
- Load Rating
- 20 A @ 120/277 VAC
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #10 AWG
Height3.281 in
Width1.32 in
Country of OriginMexico
Load TypeCFL
StandardUL 20
Load TypeXenon
Voltage120.0 V
StandardFEDSPEC
Number of Gangs1
Indoor/OutdoorIndoor
Load TypeIncandescent
Number of Switches1.0
Throw TypeDouble Throw
Number of PolesDouble Pole
Application SectorIndustrial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Special FeaturesHigh strength toggle, heavy duty toggle bumpers, locking support
