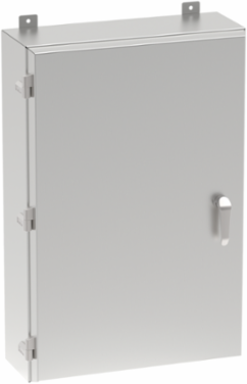

nVent Hoffman XD423612E3PTSS4 Extreme Environments Enclosure 42 Inch x 36 Inch x 12 Inch Stainless Steel 304
- MPN: XD423612E3PTSS4
- UPC: 783510569037
- PPN: HOF-XD423612E3PTSS4
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Extreme Environments Enclosure is designed for corrosive environments with padlocking handle and lift-off door. This Extreme Environments Enclosure, XD423612E3PTSS4 item measures 42x36x12 with a material of Stainless Steel 304 color Unpainted.
Features
- Seams continuously welded and ground smooth
- EPDM gasket - Temperature range: -50 to 120C (-58 to 248F)
- Silicone gasket - Temperature range: -60 to 250C (-76 to 482F)
- Single-point latching on models less than 24-inches tall
- Three-point latching on models 24-inches or taller
- Door easily removed by loosening set screws
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior Hardware made of corrosion resistant 316 stainless steel
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Material
- Stainless Steel 304
- Thickness (T)
- 1.98
- Replacement Gasket
- EPDM
Height (H)1,067
Depth (D)305
Product FamilyExtreme Environments
FinishBrushed #4
Data PocketLarge
Weight111
