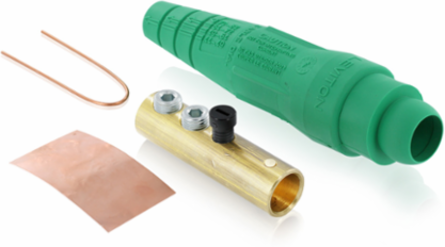

Leviton 18D31-UG Detachable Female Plug, #2 - 2/0 AWG, 300 Amp, 600 Volt Rating
Leviton 18D31-UG Detachable Female Plug, #2 - 2/0 AWG, 300 Amp, 600 Volt Rating
- MPN: 18D31-UG
- UPC: 078477719534
- PPN: LEV-18D31-UG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$73.96/ EA
Description
18 Series Ball Nose Cam-Type Female Plug, Contact & Insulator, Detachable, #2 - 2/0 AWG, Double Set Screw Termination, 300 Amp Max, 600VAC/DC, Type 3R When Mated, Green
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Specifications
Product Features
- Cable Range
- 2-2/0 AWG
- Connection Type
- Double Set Screw
- Gender
- Female
- Max. Amperage
- 300 Amp
- Series
- 18
- Style Name
- Detachable
ComponentComplete
Contact Cat. No.18D31-C
Insulator Cat. No.18SDF-22G
Max. Voltage600 Volt
Standards and CertificationsUL/CSA
WarrantyNA
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- UL Listed
- File E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating
