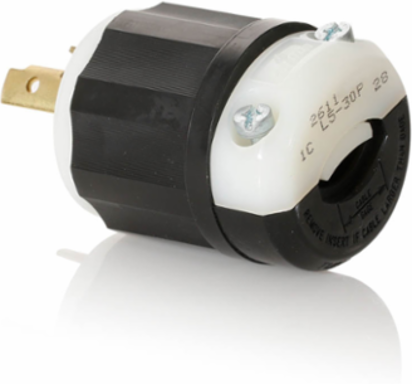

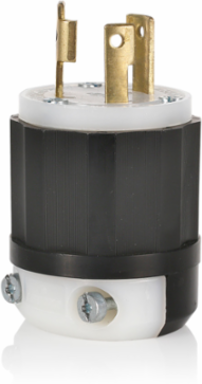

Leviton 2611 Locking Plug 30 Amp 125 Volt NEMA L5-30P with Nylon Cord Clamp
- MPN: 2611
- UPC: 078477807989
- PPN: LEV-2611
CAD
$28.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

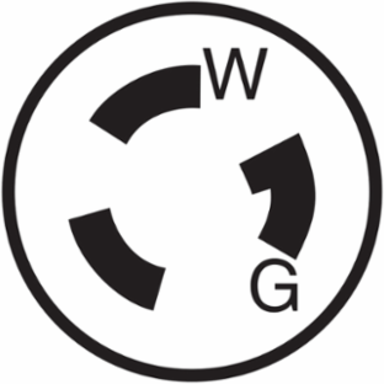

30 Amp, 125 Volt, NEMA L5-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Ideal for generators and camper trailers
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- HP Rating
- 2 HP
- Wires
- 3
- Wire Gauge
- 16-8 AWG
- Current Interrupting
- Certified for current interrupting at full rated current
- NEMA
- WD-6
- Temperature Rise
- Max 30°C after 250 cycles overload at 200% rated current
- Blades/Contacts
- Solid Brass
- Terminal Screws
- Brass
- Cord Clamp
- Nylon
- Back Cover
- Thermoplastic
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- UL Fed Spec WC-596
- File E13393
- CSA C22.2 No. 42
- File LR-406
- ANSI
- C-73
- Color
- Black-White
- Country of Origin
- Mexico
- Device Type
- Locking Plug
Voltage125 VAC
Pole2
Torque Range10-14 in-lbs
Operating Temperature-40°C to 60°C
Dielectric VoltageWithstands 2000 V per UL498
Cord Range0.520 to 0.930 in.
Body MaterialImpact Modified Nylon
Assembly ScrewsSteel, Zinc Plated
Clamp InsertNylon
Wire ModuleNylon
GroundingYes
Terminal Accom.18-10 AWG
UL498File E13393
RoHS CompliantTrue
NOM057
EnvironmentDry
BrandBlack and White
