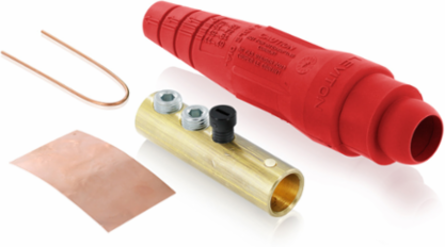

Leviton 18D31-UR Female Plug, 2-2/0 AWG, 300 Amp Max, Double Set Screw Termination
- MPN: 18D31-UR
- UPC: 078477719565
- PPN: LEV-18D31-UR
CAD
$77.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
18 Series Ball Nose Cam-Type Female Plug, Contact & Insulator, Detachable, #2 - 2/0 AWG, Double Set Screw Termination, 300 Amp Max, 600VAC/DC, Type 3R When Mated, Red
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Cable Range
- 2-2/0 AWG
- Connection Type
- Double Set Screw
- Gender
- Female
- Max. Amperage
- 300 Amp
- Series
- 18
- Style Name
- Detachable
ComponentComplete
Contact Cat. No.18D31-C
Insulator Cat. No.18SDF-22R
Max. Voltage600 Volt
Standards and CertificationsUL/CSA
WarrantyNA
Standards and Certifications
- UL Listed
- File E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating
