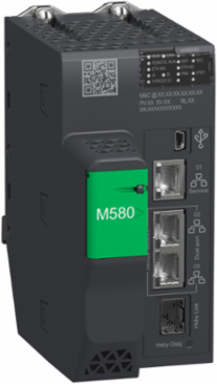

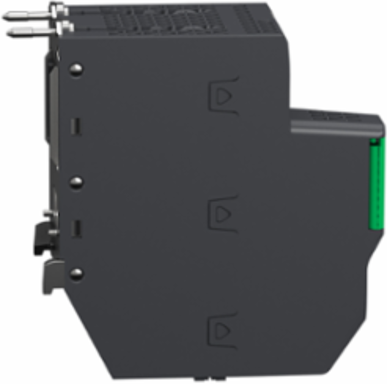

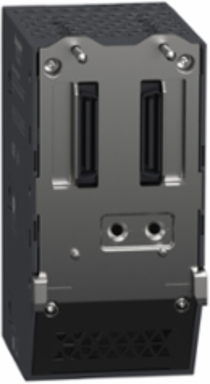

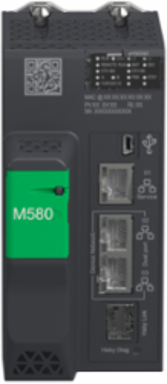

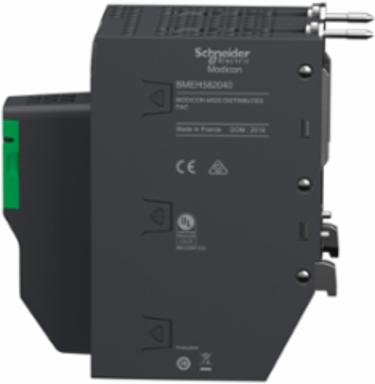

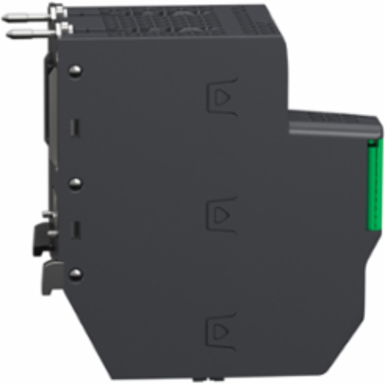

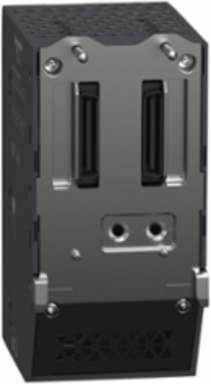

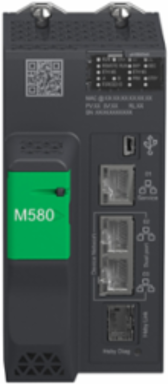

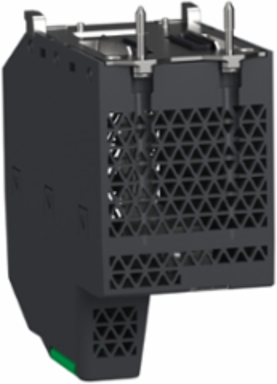

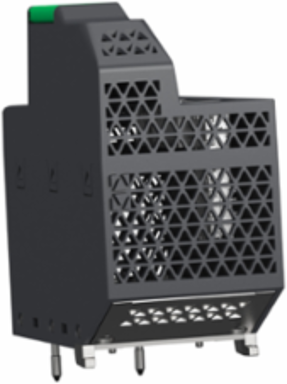

Schneider Electric BMEH582040 Modicon M580 Redundant Processor 8MB RAM, IP20 Protection, 64 Devices
- MPN: BMEH582040
- PPN: SCH-BMEH582040
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 270mA at 24V DC. It supports 8192 discrete, 2048 analogue local I/O channels and 64 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
ComplianceTAA Compliant | BAA Compliant via COTS
Communications & Management Attributes
- Communication Module Processor Capacity
- 2 Ethernet communication module, 16 AS-Interface module
Communication ServiceDIO scanner, RIO scanner
Complementary Attributes
- Integrated Connection Type
- 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B, 1 Ethernet HSBY port
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Application Structure
- 1 periodic fast task, 1 cyclic/periodic master task
- Memory Description
- expandable flash, 4 GB data storage, integrated RAM, 10 kB system memory, integrated RAM, 8 MB program, integrated RAM, 768 kB data
- Status Led
- 1 LED (Green) processor running (RUN), 1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (Green) peer processor running (REMOTE RUN), 1 LED (Green) processor ID set to A (A), 1 LED (Green) processor ID set to B (B), 1 LED (Green) processor acting as Primary (PRIM), 1 LED (Green) processor acting as Standby (STBY), 1 LED (Green) I/O values overrided by user (FORCED IO), 1 LED (Green) Hot standby link status (Hsby Diag)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.113542723, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0032166479
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 166 kg CO2 eq., 165.5145762712
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Channels
- programmable loops
- Marking
- CE
- Number Of Distributed Equipment
- 64
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M580
- Shock Resistance
- 30 gn
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 230 kg CO2 eq.
- Pep Code
- ENVPEP1312016EN
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 510.8832
- Energy Model - Installation [A5]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Energy Model - End Of Life [C1-c4]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
CybersecurityAchilles certified, DoS prevention, IPSec, SNMP logging, Syslog protocol support, transport layer security, audit trail, embedded firewall, firmware signature, password protection, port hardening, secure communication (HTTPS), security log
Number Of Instructions Per Ms30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean
Application Specific I/Ocounter, accurate time stamping, serial link, HART, motion control, SSI encoder
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3716967136, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]64 kg CO2 eq., 64.4816901408
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1312016EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1949
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Checksprocess control
Current Consumption270 mA 24 V DC
Mtbf Reliability650000 H
Number Of Racks1
Product Or Component Typeredundant processor module
ReturnabilityYes
Software VersionEIME v5.8.1
Sustainable PackagingNo
Vibration Resistance3 gn
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Number Of Remote I/O Station8 - 2 X80 remote drop
Package Weight(Lbs)883.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP1312016EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint230.4847224965
Circularity ProfileENVEOLI1312016EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1312016EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- redundant processor module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
