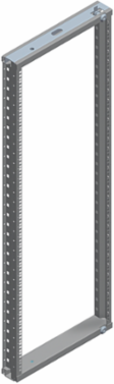

Schneider Electric NSYRSW645 Spacial SF 19" Swing Rack 2200 x 600 mm 45 Modules Steel
- MPN: NSYRSW645
- PPN: SCH-NSYRSW645
CAD
$972.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF / SM swing rack 19 inches without panels. 2200 x 600 mm. 45 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. 5mm double bar lock. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 23.62 in
Height86.61 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable in depth every 25 mm
- Device Composition
- 1 rack
- Lock Type
- lock 5 mm double bar
- Mounting Location
- on structure of enclosure
- Permanent Permissible Load
- 3 kg per unit
- Product Or Component Type
- 19" rack
- Rack Type
- swing
- Returnability
- No
- Sustainable Packaging
- No
- Height Nominal
- 2200 mm
- Width Nominal
- 600 mm
- Accessory / Separate Part Category
- mounting accessory
- Opening Of The 19" Racks
- reversible 120 °
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9403999045
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationelectronic application
Fixing Modeby fixing element
Materialsteel
Mounting Support19" swing rack support
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Rack Coveragecomplete
RangePanelSeT
Surface Finishzinc coated
Pep CodeENVPEP1109023EN
Height Useful2200 mm
Width Real600 mm
Enclosure/Cubicle Descriptionfloor-standing enclosure
Number Of Units 19"45
Package Weight(Lbs)17.000 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
General Attributes
- Product Or Component Type
- 19" rack
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
