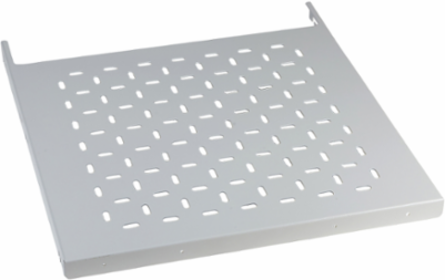

Schneider Electric NSYFXT8060 Fixed Tray for Electrical Enclosure 800x600mm, Steel, Max Load 150kg
Schneider Electric NSYFXT8060 Fixed Tray for Electrical Enclosure 800x600mm, Steel, Max Load 150kg
- MPN: NSYFXT8060
- PPN: SCH-NSYFXT8060
- UNSPSC: 39121303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$97.45/ EA
Description
Spacial SM fixed tray for enclosure of W is 800 x D is 600 mm. Tray dimensions are H is 30 x W is 682 x D is 490 mm. Maximum Load 150 kg.
Features
- PanelSet SF: Direct fixing to the structure.
- PanelSet SFX: Instalation possible only with universal cross-rails, see page 274.
- PanelSet SM: Fixing by means of adaptation profiles and 40 mm universal cross-rails (1 row) in vertical position.
- Provided with cut-outs for improving air circulation inside.
- Material: Steel
- Fixing on depth cross-rails.
- Finish: Painted with epoxy polyester resin
- Depth-adjustable tray with a pitch of 25 mm.
- Color: RAL 7035 grey
- Maximum load: 150 kg direct fixed to the structure, 40 kg when universal cross-rails are used
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 150 kg evenly distributed
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 fixed tray, fixing elements
- Mounting Support
- direct to the structure, 40 mm cross rails
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 4.224 kg
- Product Or Component Type
- fixed tray
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Accessory Separate Part Category2
- installation accessory
- Stocking Flag
- Y
- Adjustment
- adjustable in depth every 25 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 800 mm D: 600 mm, - W: 800 mm D: 600 mm, - W: 800 mm D: 600 mm, - W: 800 mm D: 600 mm, - W: 800 mm D: 600 mm, - W: 800 mm D: 600 mm
Local Data StatusPublishable
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Materialsteel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Medium DescFixed tray, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W800 D600mm, steel
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- fixed tray
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 490 mm
