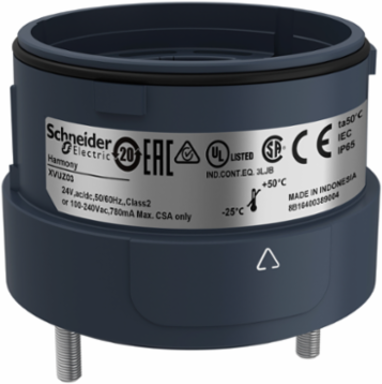

Schneider Electric XVUZ03 Harmony XVU Fixing Unit for Modular Tower Lights, 60mm, IP65, Black

MPN: XVUZ03
PPN: SCH-XVUZ03
UNSPSC: 32151501

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$51.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XVU fixing unit has 2-pins direct mounting. It has black color with a diameter of 60mm and a height of 100mm. It contains base unit. This black fixing unit is a mounting and fixing accessory for modular tower light. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.

Features

6 colors + multi color LED with 4 light patterns: steady, flashing, blinking, and rotating
4 mounting styles: flexible, wall, pole, or direct mounting
Programmable sounders that is configurable via the sd card
Moduler design supporting customization up to 5 light units
Simplified installation, easy maintenance, and direct connection to PLC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Weight	60 g

Complementary Attributes

Us Rated Supply Voltage	24 V AC/DC110...240 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Material	PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene), PC (polycarbonate)
Carbon Footprint Of The Distribution Phase A4	0.007845811625592695, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0620558449920974, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308032EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Component Name	XVU
Mounting Support	direct mounting
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XVU
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Connections Terminals	push-in
Data Source	extrapolated product
Accessory / Separate Part Category	mounting and fixing accessory
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL, CSA, CE
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.052288239770532104
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.39436867060820696
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N

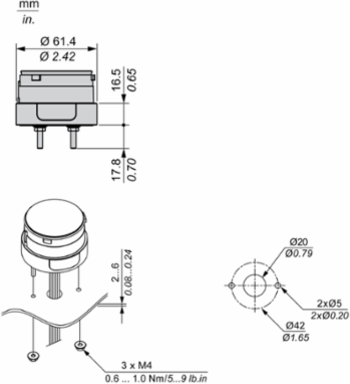

Mounting Diameter	60 mm
Pin Number	2
Product Or Component Type	modular tower light
Returnability	Yes
Sustainable Packaging	Yes
Housing Color	black
Database Version	2022-01
Length Total	17-17 mm
Accessory / Separate Part Type	mounting plate
Customs Code	8536610000
Functional Unit Description	This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
Functional Unit Unit	Unit
Recyclability Potential In %	16

Environment Attributes Main

Ambient Air Temperature For Operation	-25-50 °C, -25-50 °C
Product Compatibility	top AC body, top DC body, top swivel mounting support
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308032EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.5165585669964291
Environmental Disclosure	ENVPEP2308032EN
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
