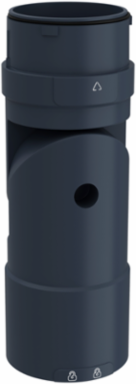

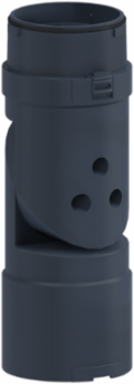

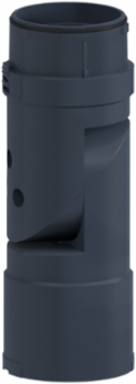

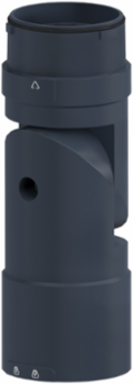

Schneider Electric XVUZ06 Flexible Mounting Unit for Harmony XVU Tower Lights, 60mm, IP55, Orientable -90 to 90
- MPN: XVUZ06
- PPN: SCH-XVUZ06
CAD
$105.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This flexible mounting unit is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and it is orientable at -90 to 90 degree operating angle. It also has an IP55 protection index.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Material
- PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene), PC (polycarbonate)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0496901402954204, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3930203516166169, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308032EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Component Name
- XVU
- Mounting Diameter
- 60 mm
- Product Or Component Type
- modular tower light
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2308032EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Length Total
- 146-146 mm
- Accessory / Separate Part Category
- mounting and fixing accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531909001
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, CE, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3311588518800367
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.497668247185311
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Function Availableorientable -90-90 °
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVU
Software Versionv5.9.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %16

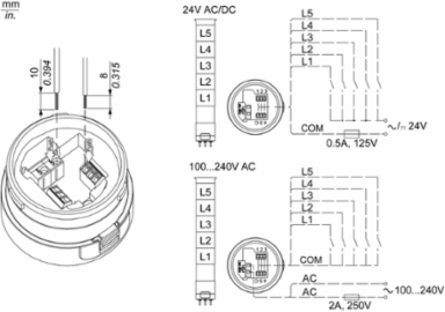

[Us] Rated Supply Voltage24 V AC/DC110...240 V AC
Accessory / Separate Part Typeswivel mounting support
Package Weight(Lbs)380.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Product Compatibility
- top AC body, top DC bodybottom mounting plate
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308032EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint3.2715375909773847
Environmental DisclosureENVPEP2308032EN
Ip Degree Of ProtectionIP55
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308032EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- modular tower light
Range Of ProductHarmony XVU
ETIM
- ETIM 8
- EC001154
ETIM 9EC001154
