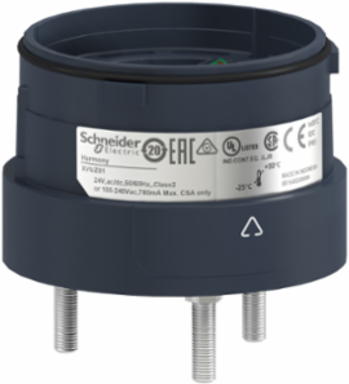

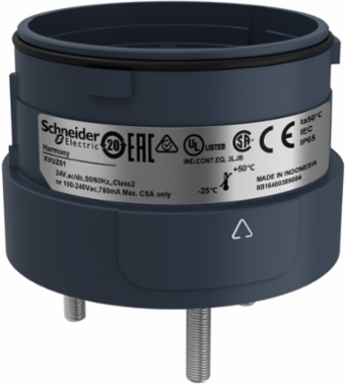

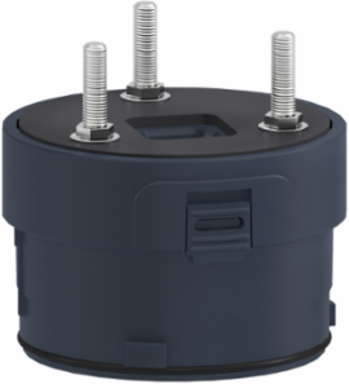

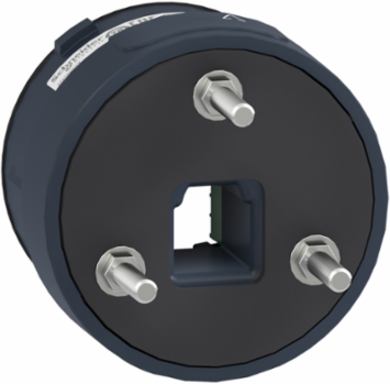

Schneider Electric XVUZ01 Harmony XVU Modular Tower Light Fixing Unit, Black, 60mm, IP65
- MPN: XVUZ01
- PPN: SCH-XVUZ01
CAD
$52.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This black fixing unit is a mounting and fixing accessory for modular tower light. It is supplied with 110V-240V AC/DC and has a mounting diameter of 60mm. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Features
- Designed explicitly for a 60mm diameter profile, this ultra-compact 17mm direct-mounting base integrates seamlessly into high-density control panels and industrial machinery. Its low-profile architecture allows you to mount indication beacons directly onto flat equipment surfaces without adding unnecessary height or footprint bulk.
- Engineered for absolute versatility across the Harmony XVU range, this 3-pin fixing unit features universal electrical pathways that natively accept both Top AC and Top DC base bodies, as well as the specialized swivel mounting support. This removes any cross-compatibility guesswork, allowing you to standardize on a single component whether your system utilizes a 24V AC/DC feed or a 110V to 240V AC mainline.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, France, Indonesia, Singapore, United States
Physical Attributes
- Housing Color
- black
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Material
- PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene), PC (polycarbonate)
- [Us] Rated Supply Voltage
- 24 V AC/DC, 110...240 V AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.054902651759058715
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.4140871041386173
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Mounting Diameter
- 60 mm
- Pin Number
- 3
- Product Or Component Type
- modular tower light
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Housing Color
- black
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 16
- Accessory / Separate Part Category
- mounting and fixing accessory

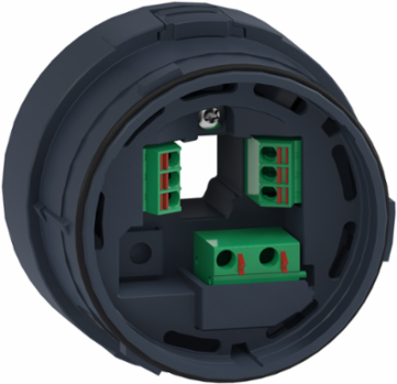

- Connections - Terminals
- push-in
- Package Weight(Lbs)
- 164.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL, CE
Carbon Footprint Of The Distribution Phase [A4]0.00823810220687233, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.06515863724170227, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308032EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameXVU
Mounting Supportdirect mounting
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVU
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Pep CodeENVPEP2308032EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27

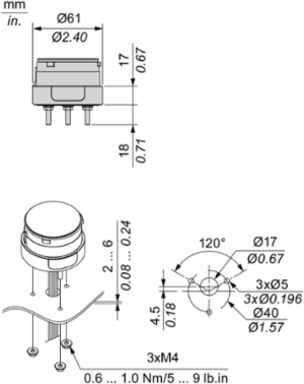

Length Total17-17 mm
Accessory / Separate Part Typemounting plate
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Product Compatibility
- top AC body, top DC body, top swivel mounting support
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308032EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint0.5423864953462506
Environmental DisclosureENVPEP2308032EN
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308032EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- modular tower light
Range Of ProductHarmony XVU
ETIM
- ETIM 8
- EC001259
ETIM 9EC001259
