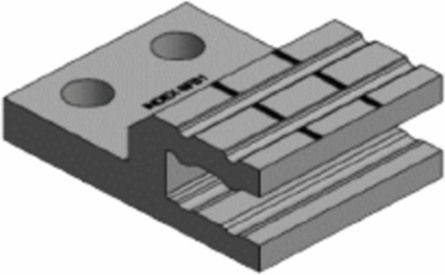

Burndy BFB6502TH38E26 Flexible Bus Terminal, 2.75 Inch Length, 3/8 Inch Stud Size, UL Recognized

MPN: BFB6502TH38E26
UPC: 621945526846
PPN: BUR-50077548
UNSPSC: 39121448

$145.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Industry-exclusive Compression Solution for flexible Bus Bar Applications.

Features

Industry Exclusive! Only offered by BURNDY®
Eliminates the need to drill through copper sheets, ensuring a cleaner, faster installation
Full inspectability with the BURNDY® Engineered System
1-hole and 2-hole options available to accommodate spacing requirements
Most flexible bus bar sizes accommodated
Locator lines on terminals provide for accurate and consistent crimping
UL Recognized to UL67 for Panelboard Equipment

Specifications

Key Specifications

Country of Origin	United States
Length	2.75 in
Number of Holes	2
Freight Class Code	16027000
Image Actual Or Representative	A
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	20
Package - GTIN - Package	30621945526847
Package Quantity	10 EA
Pallet Height	46.750 in
Pallet Weight	45.000 lb.
NAICS Code	3359319104

Dimension - Stud Size inch	3/8 in
Application	Typically used in panelboards, switchboards, transformers, control panels, and similar applications
Class Code	B42
Harmonization Code	7407103000
Sub Class Code	B42BEDF
BOX SIZE	5.125x6.438x4.875 (in)
Carton - Number of Sub Packs	20
Carton - SCC-14 Next Lower Level Sub Pack	00621945526846
Case - SCC-14 Next Lower Level Sub Pack	30621945526847
Package - Total Units	10 EA
Pallet - GTIN - Package	70621945526845
Pallet Length	48.000 in
Pallet Width	40.000 in
