Extreme Temperature Flexible Conduit 16mm, 25 Meter Length, IP68
Adaptaflex

Adaptaflex SPLHC16/25M Extreme Temperature Flexible Conduit 16mm, 25 Meter Length, IP68

  • MPN: SPLHC16/25M
  • UPC: 786210245614
  • PPN: T-B-SPLHC16/25M

CAD

$931.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

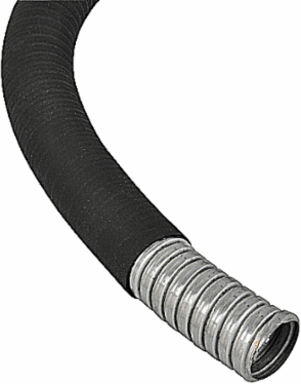

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 16mm, Outside Diameter 17.8mm, Inside Diameter 12.5mm, Static Bend Radius 50mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black

Features

  • Very high UV resistance
  • Very High flexibility
  • High fatigue life
  • High mechanical strength
  • Self extinguishing and halogen free
  • Machine Building
  • Extreme Temperature Environments

Documentation & Downloads

Specifications

European Specifications (ETIM)

ETIM
EC001179 Protective metallic hose
Outer diameter
17.8mm
Material
Steel
Sheathing material 1st coating
Other
Degree of protection (IP)
IP68
Colour
Black
Nominal diameter16mm
Inner diameter12.5mm
Surface protectionOther
Operating temperature-65-+135°C
Weight0.31kg/m
Bending strengthFlexible

North American Specifications (UNSPSC)

UNSPSC
39131706 Electrical conduit
Brand Name
Adaptaflex
Application
Liquid Tight - Extreme Temperature Environments
Outside Diameter
17.8mm
Length
25 m
Flexibility
Medium
Color
Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size3/8 Inch/NC 16mm
Inside Diameter12.5mm
Radius50mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover

Packaging

Outer Quantity
1
Weight Uom
16.2 lbs. Each
Outer Dimensions (inches)1x1x1
