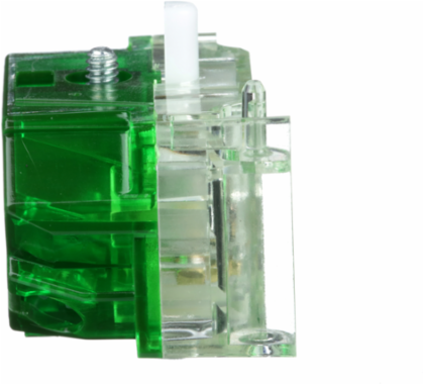

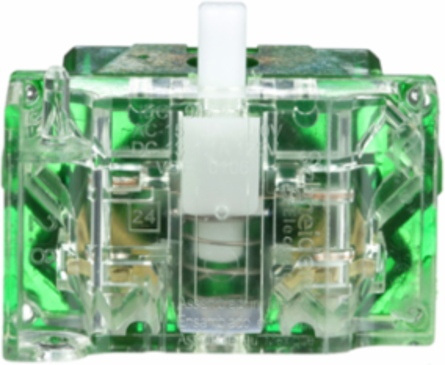

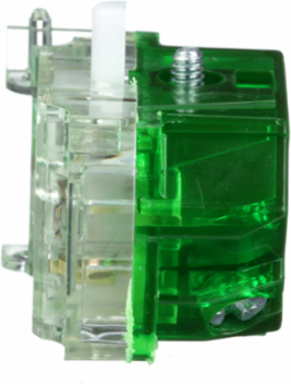

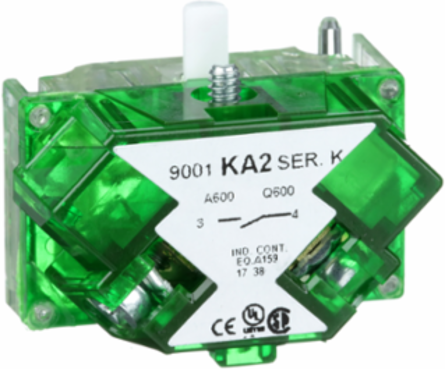

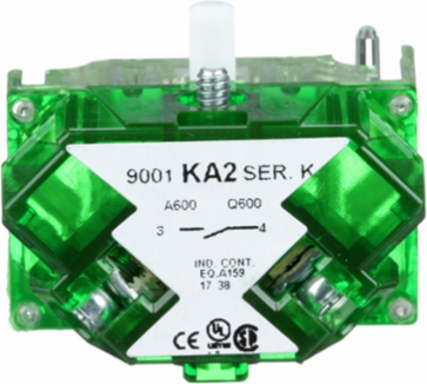

Schneider Electric 9001KA2 Harmony 9001K Contact Block, 1 NO, Silver Alloy, 0...600V, IP20
- MPN: 9001KA2
- UPC: 785901880011
- PPN: SCH-9001KA2
CAD
$27.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. Its protection index is IP20, protecting operators from unexpected contact with live circuits. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- The Schneider Square D 9001KA2 is a modular, heavy-duty contact block designed for the Harmony 9001K and 9001SK series of 30mm industrial push buttons and selector switches. It functions as the electrical "switching engine" behind the operator head, translating a physical press or turn into an electrical signal to control machinery or industrial processes.
- This specific model features a 1 NO (Normally Open) contact configuration. In its resting state, the circuit is open and no power flows; when the associated push button is pressed, the contact closes to complete the circuit. To aid in visual identification on a busy panel, the 9001KA2 typically features a green housing or green color-coding, the industry standard for "Start" or "Go" functions.
- Built for the rigors of industrial environments, the 9001KA2 is rated for up to 10 Amps at 600V AC/DC (NEMA A600/Q600). This high amperage and voltage rating makes it suitable for direct control of motor starter coils, heavy-duty relays, and high-wattage indicator lamps across diverse industrial voltages.
- The block is equipped with IP20 finger-safe screw clamp terminals. This design protects maintenance personnel from accidental contact with live electrical points while also featuring "backed-out" screws that arrive ready to accept wire, significantly reducing installation time during initial panel assembly or field retrofits.

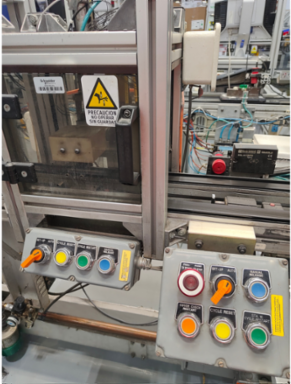

- The 9001KA2 is specifically engineered for the 30mm Harmony 9001K (metal) and 9001SK (plastic) families. These larger operators are favored in North American heavy industry (oil & gas, wastewater, and automotive) for their extreme durability and ease of use when operators are wearing heavy work gloves.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 240 V AC-15, 0.55 A 125 V DC-13, A600-Q600 NEMA
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA; 6 kA 120 V AC-15, 720 VA; 1.2 kA 600 V AC-15, 720 VA; 1.5 kA 480 V AC-15, 720 VA; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13; 0.55 kA 125 V DC-13
- Rated Insulation Voltage
- 250 V IEC 60947-1
- Conventional Free Air Thermal Current
- 10 A
- Shock Resistance
- 50 gn IEC 60068-2-27
- Contact Type
- 1 NO
- Ambient Air Temperature for Operation
- -25 to 70 °C
- Terminal Type
- Screw-clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
- Screw Head Shape
- Cross slotted
- Net Weight
- 23 g
- IP Degree of Protection
- IP20 IEC 60529
- Standards
- IEC 60947-5-4, JIS C 852, IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, UL 508, IEC 60947-1, UL 60947-5-1
- Ambient Air Temperature for Storage
- -40 to 70 °C
Rated Short-Circuit Making Capacity12 kA 600 V AC-15, 7200 VA
Rated Supply Voltage0...600 V
Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Contact OperationStandard
MaterialSilver alloy contacts
Tightening Torque0.8 N.m IEC 60947-1
Mounting Panel Thickness1 to 6 mm
Electrical Shock Protection ClassClass II IEC 61140
Product CertificationsUL 508, NEMA
Mercury FreeYes
