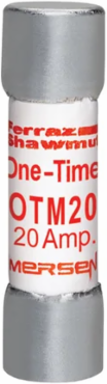

Mersen OTM20 Amp-Trap Midget Fuse 250V 20A Fast-Acting 1-1/2 Inch x 13/32 Inch
- MPN: OTM20
- UPC: 782001705138
- PPN: FER-OTM20
CAD
$3.93
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).
Features
- This OTM series Class H non-renewable cartridge fuse is fully rated for 20 Amps at up to 250V AC.
- Engineered with fast-acting, one-time speed characteristics, this single-element fuse responds instantly to harmful current spikes and short circuits.
- The non-delay response curve makes this unit the perfect, economical choice for the protection of non-inductive electrical loads, including resistance heating elements, commercial lighting grids, and general-purpose branch circuits where high inductive inrush currents are not present.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 250 V
- Ampere Rating
- 20 A
- AC or DC
- AC
- Speed/Characteristic
- Fast-Acting
- AC Max I.R./Breaking Capacity: I1
- 10 kA
- Connection/Terminal Type
- Ferrule
- Length
- 1.5 in
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassMidget
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialPaper
Weight0.012 lb
