Mersen

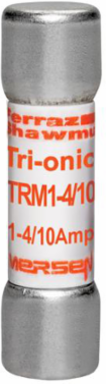

Mersen TRM1-4/10 Fuse Tri-Onic® Time-Delay Midget 250V 1.4A 1-1/2 Inch x 13/32 Inch

Fuse Tri-Onic® Time-Delay Midget 250V 1.4A 1-1/2 Inch x 13/32 Inch
  • MPN: TRM1-4/10
  • UPC: 782001743239
  • PPN: FER-TRM1-4/10

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$5.72/ EA

Description

Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).

Specifications

Specifications

Rated voltage AC UL
250 V
Ampere Rating
1.4 A
AC or DC
AC
Speed/Characteristic
Time Delay
AC Max I.R./Breaking Capacity: I1
10 kA
Connection/Terminal Type
Ferrule
Length
1.5 in
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassMidget
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG
Weight0.013 lb
