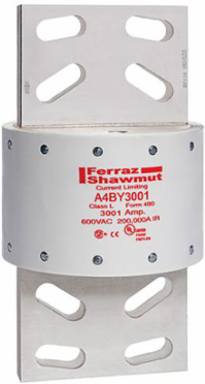

Mersen A4BY3001 Fuse Amp-Trap 600V 3001A Time-Delay Class L, 200kA Breaking Capacity

Fuse Amp-Trap 600V 3001A Time-Delay Class L, 200kA Breaking Capacity
  • MPN: A4BY3001
  • UPC: 782001939274
  • PPN: FER-A4BY3001

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1599.87/ EA

Description

Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class L
Mounting
Bolted
Connection/Terminal Material
Silver-Plated Copper
Body/Insulating Material
GMG
Weight
25.2 lb
Rated voltage DC UL300 V
Ampere Rating3001 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length10.75 in
