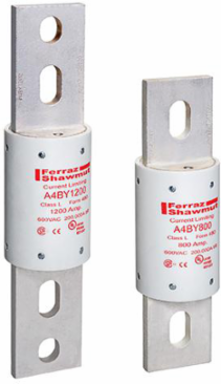

Mersen A4BY700-TI Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 700A Blade TI Indicator Amp-Trap®
Mersen A4BY700-TI Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 700A Blade TI Indicator Amp-Trap®
- MPN: A4BY700-TI
- UPC: 782001938888
- PPN: FER-A4BY700-TI
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1447.76/ EA
Description
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class L
- Mounting
- Bolted
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 3.95 lb
Rated voltage DC UL300 V
Ampere Rating700 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Indication System TypeTI Indicator
Connection/Terminal TypeBlade
Length8.63 in
