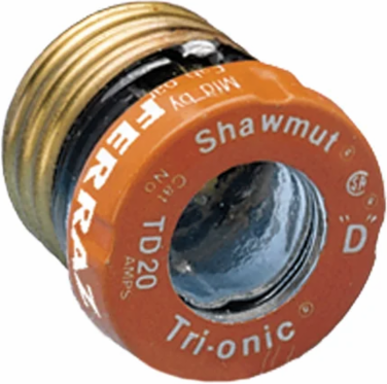

Mersen TD20 Plug Fuse 125V 20A Time Delay Screw Mount Visual Indicator, Diameter 1.13 Inch
- MPN: TD20
- UPC: 068938839925
- PPN: FER-TD20
CAD
$2.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type “S” plug fuses are time delay and tamper-resistant.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 125 V
- Ampere Rating
- 20 A
- Fuse Class
- Plug
- Mounting
- Screw
- Indication System
- Yes
- Connection/Terminal Material
- Brass
- Body/Insulating Material
- Glass
- Weight
- 0.06 lb
Frequency (Hz)50/60 Hz
AC or DCAC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I110 kA
Indication System TypeVisual Indicator
Connection/Terminal TypeScrew
Length1.29 in
