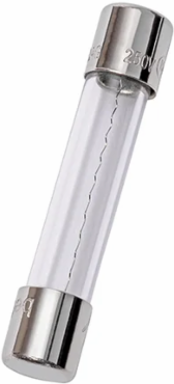

Mersen GGC20 Fast-Acting Glass Fuse 1/4" x 1-1/4", 20A, 32V
- MPN: GGC20
- UPC: 782001760793
- PPN: FER-GGC20
CAD
$0.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Fast Acting, Glass, 1/4" x 1 1/4"
Features
- Engineered with highly responsive, fast-acting single-element melting characteristics, the GGC20 opens the circuit rapidly when an overcurrent occurs. This instantaneous reaction shields delicate electronic control boards, low-voltage power supplies, and sensitive components from catastrophic thermal damage caused by sudden short circuits.
- Featuring the standard industry footprint of 1/4" diameter by 1-1/4" length (6.3 times 32 mm), this cylindrical ferrule-terminal fuse fits perfectly into standard miniature fuse blocks, inline holders, and panel-mount clips. This precise mechanical design allows for a direct drop-in replacement, eliminating compatibility guesswork and reducing maintenance downtime during emergency repairs.
- Built to handle a 20-amp continuous current rating at 32VAC, this supplemental protection device is specifically tailored for low-voltage electrical systems. Boasting a 1,000-amp interrupting rating (1 kA), it safely isolates fault currents within its designated operational threshold, making it highly effective for automotive, marine, and light-industrial control circuits
- Constructed with a high-transparency glass tube housing, this non-indicating fuse allows for immediate visual inspection of the internal element. Maintenance technicians and facility electricians can quickly spot a broken filament at a glance, bypassing the need for a multimeter during initial troubleshooting and accelerating your system diagnostic process.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Fuse Size
- 6.3x32 mm
- Fuse Class
- Supplemental
- Length
- 1.25 in
- Connection Type
- Ferrule
- Weight
- 0.01 lb
- Certifications
- UL Listed, CSA Certified
Voltage32 V
Speed/CharacteristicFast-Acting
AC or DCAC
MountingClip
MaterialGlass
RoHS CompliantYes
