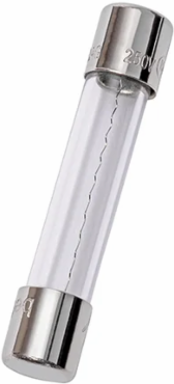

Mersen GGC30 Fast-Acting Glass Fuse 30A 1/4 Inch x 1-1/4 Inch 32V
- MPN: GGC30
- UPC: 782001760816
- PPN: FER-GGC30
CAD
$0.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Fast Acting, Glass, 1/4" x 1 1/4"
Features
- Engineered explicitly for high-current supplementary protection, this 30-amp glass tube fuse safely isolates downstream faults in heavy-duty electronic circuits. By matching your equipment's specific 30A current requirements, it prevents premature, heat-induced fatigue and costly operational downtime caused by under-rated components.
- Featuring a precision-engineered, single-element fast-acting configuration, it provides instantaneous clear times during hazardous overcurrent conditions. The ultra-fast interruption profile acts as a critical line of defense, isolating harmful power spikes long before sensitive, expensive low-voltage industrial electronics sustain permanent thermal breakdown.
- Molded into the industry-standard miniature ferrule size of 1/4 in times 1-1/4 in (6.3 times 32 mm), this clear cylindrical cartridge drops directly into existing industrial clip mounts and inline fuse holders. The standardized dimensions guarantee a seamless, drop-in mechanical replacement for blown supplemental fuses without requiring terminal retrofitting or housing modifications.
- Rated for operational voltages up to 32VAC with a solid 1,000-amp (1kA) interrupting rating, this supplemental fuse safely quenches internal electrical arcs under maximum fault conditions. This robust clearing capacity provides essential localized isolation, ensuring short circuits are contained within the device rather than feeding back and threatening upstream branch circuit integrity
Documentation & Downloads
Specifications
Additional
- Ampere Rating
- 30 A
- Interrupting Rating
- 1000 A @ 32 VAC
- Fuse Size
- 6.3x32 mm
- Mounting
- Clip
- Length
- 1.25 in
- Weight
- 0.01 lb
Voltage32 V AC
Fuse ClassSupplemental
Speed/CharacteristicFast-Acting
Connection/Terminal TypeFerrule
Body/Insulating MaterialGlass
RoHS CompliantYes
