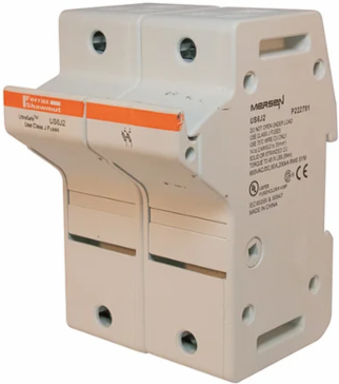

Mersen US6J2 Fuse Holder UltraSafe™ 600VAC 600VDC Class J 60A 2-Pole Pressure Plate IP65

Fuse Holder UltraSafe™ 600VAC 600VDC Class J 60A 2-Pole Pressure Plate IP65
  • MPN: US6J2
  • UPC: 782001830878
  • PPN: FER-US6J2

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$107.55/ EA

Description

Mersen UltraSafe Modular 600 Volt Fuse Holders for Class J fuses introduce a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as “finger-safe” to an IP20 grade of protection under IEC standards. The US3J accommodates 30A Class J or 22 x 58 mm French Ferrule* fuses. The US6J is for 60A Class J fuses. UltraSafe holders are available in compact 1, 2, or 3 pole units, with or without blown-fuse indicators in each pole. Multi-pole units can also be made up in the field by using the multiplepole Assembly Kits. All units have provisions for locking in the open position for safety during fuse changeouts or equipment servicing. US3J and US6J holders can be snap-mounted to 35 mm DIN-rail and they have a unique latch which will stay open to allow re-positioning of the holder in the future. UltraSafe body material is tough and durable polyamide. *Holder not UL listed when installed with French Ferrule fuses. RECOMMENDED FUSE USAGE: *US3J, US6J use with AJT, A4J, HSJ

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class J
Fuse Type/Class
Class J
Wiring range
#2 to 14 AWG
Torque Rating
45 lb-in
Installation Mounting
DIN Rail
Width
3.15 in
Height
3.5 in
Rated voltage DC UL600 V
Ampere Rating60 A
AC or DCAC/DC
Short Circuit Current Rating (SCCR)200 kA
Number of Poles2-Pole
Fuse Installation MethodClip-in
Max Fuse Rating60 A
Body/Insulating MaterialPolyamide
Length4.8 in
Weight1.22 lb
