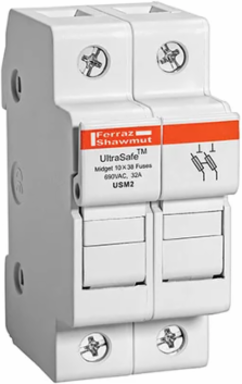

Mersen USM2 UltraSafe Fuse Holder 800V 30A Midget 2-pole DIN Rail Mounting
- MPN: USM2
- UPC: 782001829988
- PPN: FER-USM2
CAD
$22.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles. UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Features
- Engineered to meet strict IEC and DIN safety standards, this holder delivers an IP20 touch-safe rating that completely isolates live components. Panel builders and maintenance electricians can safely swap out blown fuses with the flick of a finger without risking accidental shock or requiring specialized protective gear.
- Boasting a highly versatile 30-amp, high-voltage capacity, this 2-pole modular unit is ideal for protecting industrial control transformers, motor circuits, and alternative energy installations. Its 1000VDC compatibility makes it a perfect, code-compliant choice for solar photovoltaic combiner boxes, preventing catastrophic equipment damage from high-energy overcurrent events.
- This holder is custom-molded to accommodate standard 1-1/2 in times 13/32 in (10 times 38 mm) Midget-class fuses, ensuring a tight mechanical seat. It provides seamless, drop-in integration with high-performance fuse lines including ATQ, ATM, TRM, OTM, and DCT series eliminating localized heating and preventing critical system down-time.
- Designed with a narrow, streamlined housing, this modular unit saves up to 15% more horizontal enclosure space compared to traditional, open-style fuse blocks. It snaps cleanly onto standard 35mm DIN rails, allowing panel engineers to maximize component density and optimize cable routing pathways inside crowded electrical enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 800 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Midget
- Fuse Type/Class
- Midget
- Wiring range
- #6 to #14 Solid or Stranded
- Torque Rating
- 15 lb-in
- Installation Mounting
- DIN Rail
- Width
- 1.38 in
- Height
- 2.32 in
Rated voltage DC UL1000 V
Ampere Rating30 A
AC or DCAC/DC
Short Circuit Current Rating (SCCR)100 kA
Number of Poles2-Pole
Fuse Installation MethodClip-in
Max Fuse Rating30 A
Body/Insulating MaterialPolyamide
Length3.07 in
Weight0.28 lb
