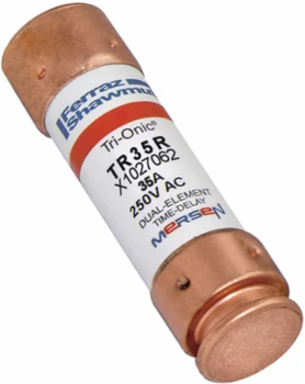

Mersen TR35R Fuse Tri-Onic® 250V 35A Time-Delay Class RK5, 0.81 Inch Diameter, 3 Inch Length
- MPN: TR35R
- UPC: 782001747909
- PPN: FER-TR35R
CAD
$8.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Features
- Boasting exceptional current-limiting capabilities, the TR35R rapidly chokes off massive electrical faults before they can reach peak energy levels. This premium level of protection significantly minimizes let-through current, shielding your downstream breakers, contactors, and control circuits from catastrophic thermal and mechanical damage during a short circuit event.
- Rated for a massive 200,000 Amps AC and 20,000 Amps DC at 250 Volts, this Class RK5 fuse delivers ultimate overcurrent protection for demanding industrial environments. It easily handles high-fault current zones within service entrances, main feeders, and branch distribution panels, ensuring full code compliance and workplace safety.
- Designed with a strict physical rejection shape, this 3-inch ferrule-terminal cartridge fits perfectly into standard Class RK5 fuse blocks while preventing the dangerous installation of lower-rated or non-current-limiting legacy fuses. This built-in mechanical safeguard protects maintenance teams from configuration errors and maintains the strict engineering integrity of your panel design.
- Built with a high-strength fiberglass body and packed with industrial-grade silica filler, this fuse provides incredible dimensional stability and rapid arc quenching under extreme heat. It resists internal pressure and physical degradation in high-vibration plants, while the stamped metal date and catalog markings ensure permanent legibility for swift safety audits and field identification.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V
- AC or DC
- AC/DC
- Breaking Capacity
- 200 kA AC, 20 kA DC
- Length
- 3 in
- Weight
- 0.119 lb
- Connection Type
- Ferrule
- Fuse Class
- Class RK5
- Compliance
- RoHS Compliant
Amperage35 A
Frequency50/60 Hz
Time Delay ClassRK5
Diameter0.81 in
Connection MaterialCopper
Body MaterialPolyTube
MountingClip
